Weidmuller 1601760000 HDC-C-HD-BM0.75-1.00AG

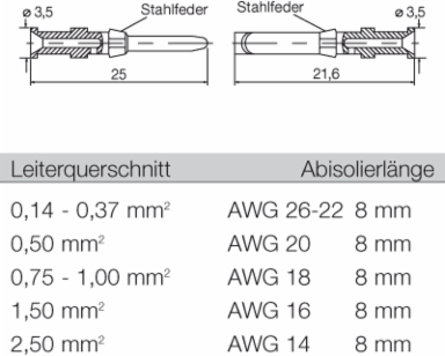

HDC-C-HD-BM0.75-1.00AG - https://media.province-electric.com/web-weidmueller/2019q4/1fd7850f7f36b4e6dd359b1e4a09dc6b49439280-medium.png

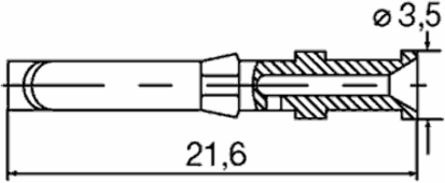

HDC-C-HD-BM0.75-1.00AG - https://media.province-electric.com/web-weidmueller/2019q4/c8503fb81b8ae1c8ceabb4d699d7f9116a19962a-medium.png

HDC-C-HD-BM0.75-1.00AG

HDC-C-HD-BM0.75-1.00AG

HDC-C-HD-BM0.75-1.00AG

Weidmuller 1601760000 HDC-C-HD-BM0.75-1.00AG

MPN: 1601760000
PPN: WDM-1601760000

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.93/ EA

Loading add to cart quantity...

Description

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy

Specifications

General Data

Contact diameter, male Ø: 1.6 mm

Material: Copper alloy

Production methods: turned

Stripping length, rated connection: 8 mm

Type: Female

Version insert: HD, HDD, HQ, MixMate

Cross-section for connected wire0.75 - 1 mm²

Plugging cycles≥ 500

SeriesHD

Surface finishsilver

Type of connectionCrimp connection

Volume resistance≤ 4mΩ

Approvals

Approvals: CSA, cURus, EAC

UL File Number Search: E92202

ROHSConform

Dimensions And Weights

Net weight: 0.6 g

Diameter3.5 mm

General Descriptions

Plugging cycles: ≥ 500

Material

Material: Copper alloy

Connection Data

Conductor cross-section, min.: 0.75 mm²

Stripping length: 7.5 mm

Conductor cross-section, max.1 mm²

Classifications

ETIM 6.0: EC000796

eClass 9.0: 27-44-02-04

eClass 10.0: 27-44-02-04

ETIM 7.0EC000796

eClass 9.127-44-02-04

UNSPSC30-21-18-01

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Design

Product family: Crimping contact

Type: Female

Product typeCrimp contact

Type of connectionCrimp connection

Downloads
