Weidmuller

Weidmuller 1651520000 HDC-C-HD-SM0.14-0.37AG

HDC-C-HD-SM0.14-0.37AG
HDC-C-HD-SM0.14-0.37AG
HDC-C-HD-SM0.14-0.37AG
  • MPN: 1651520000
  • PPN: WDM-1651520000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.82/ EA

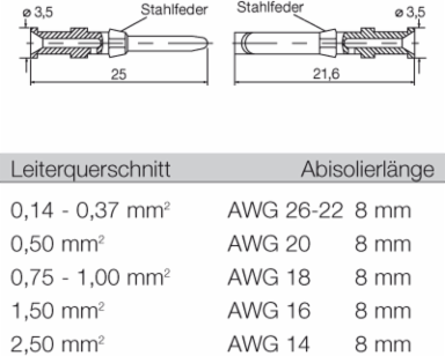

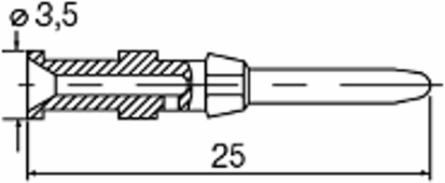

Description

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Pin, Conductor cross-section, max.: 0.37, turned, Copper alloy

Specifications

Conductor Cross-Section
0.14 - 0.37 mm8
Plugging Cycles
≥ 500
Diameter
3.2 mm
Connection Type
Crimp connection
Cross-Section for Connected Wire
0.14 - 0.37 mm8
Surface Finish
silver
UL File Number
E92202
REACH SVHC
Lead 7439-92-1
Product Family
Crimping contact
Series
HD
UNSPSC
30-21-18-01
eClass 9.1
27-44-02-04
ETIM 7.0
EC000796
Volume Resistance≤4 mΩ
Stripping Length, Rated Connection8 mm
Contact Diameter, Male1.6 mm
TypePin
MaterialCopper alloy
Production Methodturned
ApprovalsCSA, cURus, EAC
ROHSConform
Version InsertHD, HDD, HQ, MixMate
Product TypeCrimp contact
eClass 10.027-44-02-04
eClass 9.027-44-02-04
ETIM 6.0EC000796
