Weidmuller

Weidmuller 1601750000 HDC-C-HD-SM0.75-1.00AG

HDC-C-HD-SM0.75-1.00AG
HDC-C-HD-SM0.75-1.00AG
HDC-C-HD-SM0.75-1.00AG
  • MPN: 1601750000
  • PPN: WDM-1601750000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.93/ EA

Description

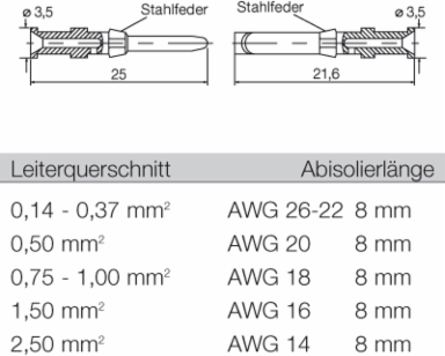

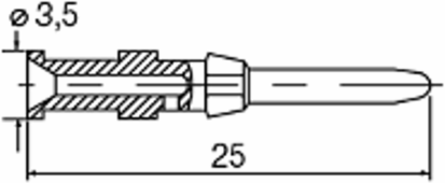

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Pin, Conductor cross-section, max.: 1, turned, Copper alloy

Specifications

General Data

Contact diameter, male Ø
1.6 mm
Material
Copper alloy
Production methods
turned
Stripping length, rated connection
8 mm
Type
Pin
Version insert
HD, HDD, HQ, MixMate
Cross-section for connected wire0.75 - 1 mm²
Plugging cycles≥ 500
SeriesHD
Surface finishsilver
Type of connectionCrimp connection
Volume resistance≤ 4mΩ

Approvals

Approvals
CSA, cURus, EAC
UL File Number Search
E92202
ROHSConform

Dimensions And Weights

Net weight
0.55 g
Diameter3.5 mm

General Descriptions

Plugging cycles
≥ 500

Material

Material
Copper alloy

Connection Data

Conductor cross-section, min.
0.75 mm²
Stripping length
7.5 mm
Conductor cross-section, max.1 mm²

Classifications

ETIM 6.0
EC000796
eClass 9.0
27-44-02-04
eClass 10.0
27-44-02-04
ETIM 7.0EC000796
eClass 9.127-44-02-04
UNSPSC30-21-18-01

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Design

Product family
Crimping contact
Type
Pin
Product typeCrimp contact
Type of connectionCrimp connection
