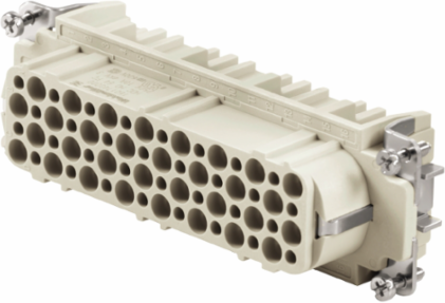

Weidmuller 1601740000 HDC HD 64 FC
Weidmuller 1601740000 HDC HD 64 FC
- MPN: 1601740000
- PPN: WDM-1601740000
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$21.04/ EA
Description
HDC insert, Female, 250 V, 10 A, Number of poles: 64, Crimp connection, Size: 8
Specifications
General Data
- Conductor cross-section
- 2.5 mm²
- Insulating material group
- IIIa
- Number of poles
- 64
- Plugging cycles, silver
- ≥ 500
- Rated current (DIN EN 61984)
- 10 A
- Rated voltage (DIN EN 61984)
- 250 V
- Series
- HD
- Type
- Female
- Volume resistance
- ≤ 4mΩ
Insulating materialPC glass-fibre reinforced (UL-listed and railway-certified)
Insulation strength1010 Ω
Plugging cycles, gold≥ 500
Pollution severity3
Rated impulse voltage (DIN EN 61984)4 kV
Rated voltage according to UL/CSA600 V AC/DC
Size8
UL 94 flammability ratingV-0
Approvals
- Approvals
- CSA, EAC
ROHSConform

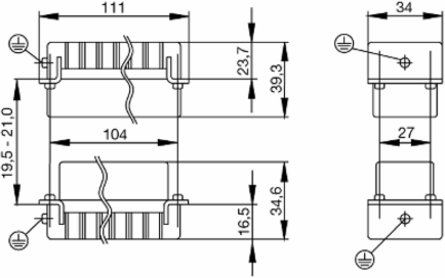

Dimensions And Weights
- Width
- 34 mm
- Height
- 35 mm
- Depth
- 111 mm
- Net weight
- 79 g
Width (inches)1.339 inch
Height (inches)1.378 inch
Depth (inches)4.37 inch
General Descriptions
- Number of poles
- 64
Size8
Dimensions
- Height of socket
- 35 mm
Total length base111 mm
Version
- Conductor cross-section, max.
- 2.5 mm²
- Size
- 8
- Type of connection
- Crimp connection
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross-section, solid, max.
- 2.5 mm²
Conductor cross-section, min.0.14 mm²
Stripping length, rated connection8 mm
Volume resistance≤ 4mΩ
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross-section, solid, min.0.5 mm²
Material
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- UL 94 flammability rating
- V-0
Colourbeige
Connection Data
- Conductor cross-section, min.
- 0.14 mm²
- Wire connection cross section AWG, min.
- AWG 26
Conductor cross-section, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Connection Data Pe
- Blade size, crosshead
- size PZ1
- Connection type PE
- Screw connection
- Rated cross-section
- 2.5 mm²
- Tightening torque, max. PE connection
- 1.5 Nm
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross section, AWG (PE), max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
Blade size, slotted (PE connection)SD 0.6 x 3.5, SD 0.8 x 4.0
Fixing screwM 4
Stripping length PE connection10 mm
Tightening torque, min. PE connection1.2 Nm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross section, AWG (PE), min.AWG 20
Wire cross-section, solid, min.0.5 mm²
Classifications
- ETIM 6.0
- EC000438
- eClass 9.0
- 27-44-02-05
- eClass 10.0
- 27-44-02-05
ETIM 7.0EC000438
eClass 9.127-44-02-05
UNSPSC30-21-18-01
Design
- Product family
- HDC insert
- Type
- Female
- Blade size, crosshead
- size PZ1
Product typeInsert
Type of connectionCrimp connection
Temperatures
- Limit temperature
- -40 °C ... 125 °C
