Emergency Stop Button Head 60mm, Red Mushroom, IP66 Protection
Schneider Electric

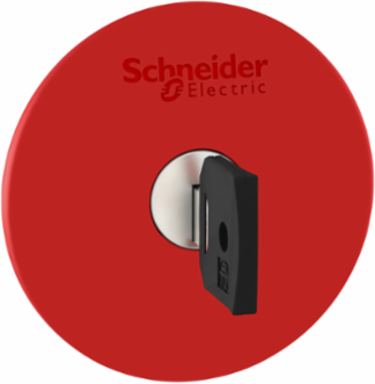

Schneider Electric ZB5AS964 Emergency Stop Button Head 60mm, Red Mushroom, IP66 Protection

  • MPN: ZB5AS964
  • PPN: SCH-ZB5AS964
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $144.20

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB5 emergency stop / shutdown 60mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia, France, Mexico

    Physical Attributes

    Cad Overall Depth
    79 mm
    Cad Overall Width
    60 mm
    Cad Overall Height60 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    0, no
    Operator Profile
    red mushroom Ø 60 mm, unmarked, mushroom Ø 60 mm
    Station Name
    XALD 1 cut-out, XALK 1 cut-out
    Certificate Agency
    CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.1359754386
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.6 kg CO2 eq., 0.6234605957
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2308013EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    60 %
    Bezel Material
    dark grey plastic
    Device Short Name
    ZB5
    Head Type
    standard
    Main Group
    E-stop
    Mechanical Durability
    300000 cycles
    Overvoltage Category
    class II conforming to IEC 60536
    Product Destination
    emergency stop push-button
    Protective Treatment
    TH
    Reset
    key release
    Returnability
    Yes
    Shape Of Signaling Unit Head
    round
    Sustainable Packaging
    No
    Type Of Keylock
    key 455
    Vibration Resistance
    5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Operator Profile 1 Operator Profile
    mushroom Ø 60 mm
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Emergency stop modular red push button operates with a latched key release mechanism and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Composition CodeC7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting, C10 4 single and double front mounting
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Operator Profile 1 Cap Operator Or Lens Colorred
    Carbon Footprint Of The Distribution Phase [A4]0.0106768455, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0199954801, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content7 %
    Compatibility CodeZB5
    Group Of Productemergency stop key release
    Key Withdrawal Positioncenter
    Markingunmarked
    Mounting Diameter22 mm
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typehead for emergency stop push-button
    Range Of ProductHarmony XB5
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.8 kg CO2 eq.
    Type Of Operatortrigger action and mechanical latching
    Keylock Typekey 455
    Pep CodeENVPEP2308013_V1-EN
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Reference Lifetime, In Y10
    Cap/Operator Or Lens Colourred
    Package Weight(Lbs)81.647 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    0.7901083599
    Environmental Disclosure
    ENVPEP2308013_V1-EN
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
    Recycled Metal Content At Cr Level60 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2308013EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2308013_V1-EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    head for emergency stop push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC001038
    ETIM 9EC001038

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    basic element
