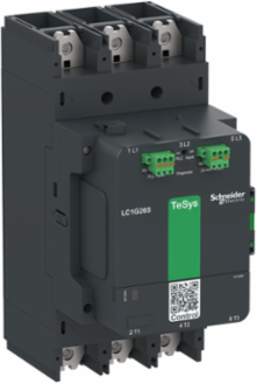

Schneider Electric LC1G330LSEA TeSys Giga 3 Pole Power Contactor 330A 200-500V AC/DC Coil 290x140x226mm
Schneider Electric LC1G330LSEA TeSys Giga 3 Pole Power Contactor 330A 200-500V AC/DC Coil 290x140x226mm
- MPN: LC1G330LSEA
- PPN: SCH-LC1G330LSEA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3941.23/ EA
Description
TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 330A 200kW@440V. It provides a 200-500V AC/DC wide band low consumption electronic coil, PLC output control and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection with cable memory kit and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 140mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Protective Treatment
- TH
- Mechanical Robustness
- vibrations 5-300 Hz 2 gn contactor open || vibrations 5-300 Hz 4 gn contactor closed || shocks 10 gn 11 ms contactor open || shocks 15 gn 11 ms contactor closed
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106
Colourdark grey
Complementary
- Product Certifications
- CB Scheme || CCC || cULus || EAC || CE || UKCA || EU-RO-MR by DNV-GL
- Power Dissipation Per Pole
- 30 W AC-1 - Ith 440 A || 16 W AC-3 - Ith 330 A
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1 || JIS C8201-5-1
- Hold-In Power Consumption In W
- 9.0-9.0 W
- Associated Fuse Rating
- 400 A aM at <= 440 V for motor || 250 A aM at <= 690 V for motor || 500 A gG at <= 690 V
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Pole Contact Composition
- 3 NO
- Coil Technology
- built-in bidirectional peak limiting
- Maximum Operating Rate
- 600 cyc/h AC-3 || 600 cyc/h AC-3e || 300 cyc/h AC-1 || 150 cyc/h AC-4
- Tightening Torque
- 35 N.m
- Hold-In Power Consumption In Va
- 16.1-16.1 VA
- Overvoltage Category
- III
- Motor Power Hp
- 100 hp at 200/208 V 60 Hz || 125 hp at 230/240 V 60 Hz || 250 hp at 460/480 V 60 Hz || 300 hp at 575/600 V 60 Hz
- [Ui] Rated Insulation Voltage
- 1000 V
- [Icw] Rated Short-Time Withstand Current
- 2.65 kA - 10 s || 1.8 kA - 30 s || 1.3 kA - 1 min || 0.9 kA - 3 min || 0.75 kA - 10 min
Height290 mm
Average Impedance0.000144 Ohm
Connection Pitch45 mm
Mounting Supportplate
Rated Breaking Capacity2940 A at 440 V
Net Weight8.2 kg
Inrush Power In Va530-530 VA
Connections - Terminalspower circuit: bar 2 - busbar cross section: 32 x 10 mm || power circuit: lugs-ring terminals 1 185-185 mm² || power circuit: bolted connection || control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end || control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end || control circuit: push-in 2 0.5-1.0 mm² with cable end || control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end || control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
Operating Time40...70 ms closing || 15...50 ms opening
Mechanical Durability8 Mcycles
Compatibility CodeLC1G
Width140 mm
Depth226 mm
Motor Power Kw90 kW at 230 V AC 50/60 Hz (AC-3e) || 160 kW at 400 V AC 50/60 Hz (AC-3e) || 160 kW at 415 V AC 50/60 Hz (AC-3e) || 185 kW at 440 V AC 50/60 Hz (AC-3e) || 200 kW at 500 V AC 50/60 Hz (AC-3e) || 220 kW at 690 V AC 50/60 Hz (AC-3e) || 185 kW at 1000 V AC 50/60 Hz (AC-3e) || 90 kW at 230 V AC 50/60 Hz (AC-3) || 160 kW at 400 V AC 50/60 Hz (AC-3) || 160 kW at 415 V AC 50/60 Hz (AC-3) || 200 kW at 440 V AC 50/60 Hz (AC-3) || 200 kW at 500 V AC 50/60 Hz (AC-3) || 220 kW at 690 V AC 50/60 Hz (AC-3) || 185 kW at 1000 V AC 50/60 Hz (AC-3) || 90 kW at 230 V AC 50/60 Hz (AC-4) || 160 kW at 400 V AC 50/60 Hz (AC-4) || 160 kW at 415 V AC 50/60 Hz (AC-4) || 185 kW at 440 V AC 50/60 Hz (AC-4) || 200 kW at 500 V AC 50/60 Hz (AC-4) || 220 kW at 690 V AC 50/60 Hz (AC-4) || 185 kW at 1000 V AC 50/60 Hz (AC-4)
Inrush Power In W300 W
Specifications
- [Uc] Control Circuit Voltage
- 200...500 V AC 50/60 Hz || 200...500 V DC
- Range Of Product
- TeSys Giga
- Contactor Application
- power switching || motor control
- Range
- TeSys
- [Ie] Rated Operational Current
- 440 A (at <40 °C) at <= 1000 V AC-1 || 330 A (at <60 °C) at <= 440 V AC-3
- Device Short Name
- LC1G
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz || <= 460 V DC
Control Circuit Voltage Limitsoperational: 0.8 Uc Min...1.1 Uc Max (at <60 °C) || drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Product Or Component Typecontactor
Utilisation CategoryAC-1 || AC-3 || AC-3e || AC-4 || AC-5a || AC-5b || AC-6a || AC-6b || AC-8b || AC-8a || DC-1 || DC-3 || DC-5
Poles Description3P
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105013
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
