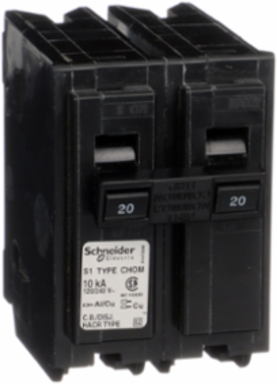

Schneider Electric CHOM220 Miniature Circuit Breaker 20A 2 Pole 120/240V AC 10kA Plug-On
- MPN: CHOM220
- UPC: 785901647652
- PPN: SCH-CHOM220
CAD
$27.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 2A at 12/24 VAC. HOM breakers provide 1 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified. 10 kA-Range Presentation
Features
- The CHOM220 is a 2-pole, 20-Amp Homeline (CHOM) Miniature Circuit Breaker designed for 240V residential circuits. It is the standard protection choice for smaller heavy-duty appliances that require a dedicated two-wire feed, such as baseboard heaters, small well pumps, and some localized HVAC equipment.
- This breaker is engineered exclusively for Schneider Electric Homeline load centers. It utilizes a 2-inch wide "plug-on" design that occupies two 1-inch spaces on the bus bar. It is not compatible with Square D QO (Premium) panels, nor will it fit into panels from Eaton or Siemens. Always verify that your panel is labeled "Homeline" or "CHOM" before installation.
- Featuring an internal common-trip mechanism, the CHOM220 ensures that if a fault or overload occurs on one "hot" leg, both poles trip simultaneously. This prevents "single-phasing," a condition where a motor or heater remains partially powered, which can lead to equipment burnout or electrical fires in 240V systems.
- For a standard 20-Amp installation, this breaker should be paired with 12 AWG conductors. Its robust box-lug terminals provide a secure connection for both copper and aluminum wire (#14 to #8 AWG). The simple snap-in design allows for rapid installation, while the center-trip handle position provides immediate visual confirmation of a fault.
- The Schneider Electric CHOM220 is fully CSA (Canadian Standards Association) certified and designed to meet the rigorous requirements of the Canadian Electrical Code (CEC). With a 10,000 AIR (Amperes Interrupting Rating), it offers reliable, professional-grade safety for Canadian residential power distribution and home improvement projects.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P
[In] Rated Current20 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 14...AWG 8 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
