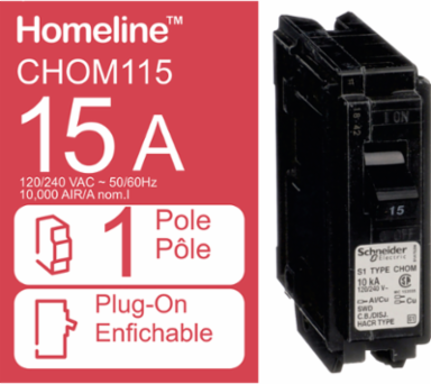

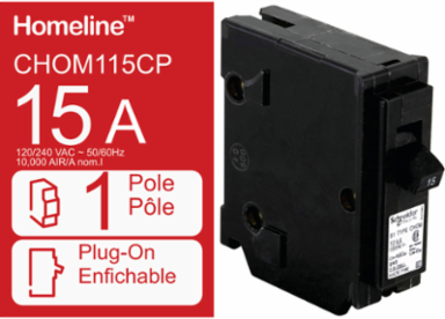

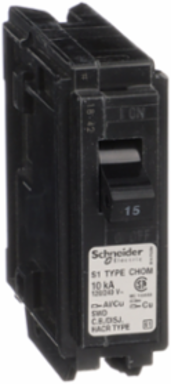

Schneider Electric CHOM115 Miniature Circuit Breaker, 15A, 1 Pole, 120/240V, 10kA, Plug-On
- MPN: CHOM115
- UPC: 785901633891
- PPN: SCH-CHOM115
CAD
$14.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 12/24 VAC. HOM breakers provide 1 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1. inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Features
- The CHOM115 is a single-pole, 15-Amp Homeline (CHOM) Miniature Circuit Breaker designed for residential branch circuit protection. It provides essential thermal-magnetic protection, automatically tripping during overloads or short circuits to prevent wire overheating and potential fire hazards in your home's electrical system.
- This breaker is engineered exclusively for use in Schneider Electric Homeline load centers. It features a standard 1-inch space-saving plug-on design, ensuring a secure and reliable connection to the bus bar. Note that it is not compatible with Square D QO, Canadian Federal Pioneer, or other manufacturer panels; always verify your panel type before installation.
- The CHOM115 is equipped with robust box-lug terminals that accommodate both aluminum and copper wiring (typically #14 to #8 AWG). The simplified plug-on installation allows for a fast, "snap-in" setup, while the clear "ON/OFF" indicator and center-trip position provide immediate visual confirmation of the breaker's status during troubleshooting.
- Designed for standard 120V AC residential applications, this breaker features a 10,000 AIR (Amperes Interrupting Rating). This high interrupting capacity ensures the breaker can safely clear a significant fault current without damaging the panel or surrounding components, maintaining the safety integrity of your electrical infrastructure.
- The Schneider Electric CHOM115 is fully CSA (Canadian Standards Association) certified, specifically tailored to meet the requirements of the Canadian Electrical Code (CEC). Its reliable performance and strict adherence to safety standards make it the primary choice for Canadian homeowners and contractors for protecting lighting and receptacle circuits.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR and Switching Duty rated
- Circuit Breaker Type
- standard
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description1P
[In] Rated Current15 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 1
Awg GaugeAWG 14...AWG 8 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
