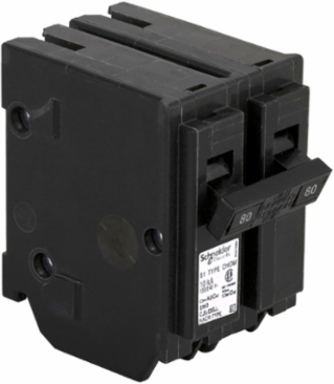

Schneider Electric CHOM280 Homeline Miniature Circuit Breaker 80A 2-Pole 120/240V AC 10kA
- MPN: CHOM280
- UPC: 785901648116
- PPN: SCH-CHOM280
CAD
$130.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- Rated for 80 Amps and operating at 120/240V AC, this double-pole breaker delivers robust, high-amperage sub-feed or dedicated equipment power. It is ideal for demanding household applications such as EV charging stations, large hot tubs, or heavy workshop machinery, protecting your high-draw circuits from overloading without unnecessary tripping.
- Built to safeguard your home against severe electrical hazards, this thermal-magnetic breaker boasts a 10 kA Ampere Interrupting Rating (AIR). It is fully CSA certified and UL listed to instantly interrupt high-fault short-circuit currents, providing code-compliant peace of mind and defending your underlying household wiring from catastrophic thermal damage.
- This premium mini circuit breaker is fully HACR rated, meaning it is safety-engineered to handle the unique, high-inrush surge currents typical of heating, air conditioning, and refrigeration compressors. By managing these brief operational spikes without nuisance tripping, it maintains consistent climate control while ensuring absolute safety for your HVAC investments.
- Equipped with robust screw clamp terminals, this breaker reliably accepts a broad wire gauge range from 4 AWG up to 2/0 AWG for both copper and aluminum conductors. The heavy-duty box lugs create a secure, highly conductive physical connection, minimizing resistance and preventing dangerous wire loose-connections over years of continuous service.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P
[In] Rated Current80 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 4...AWG 2/0 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
