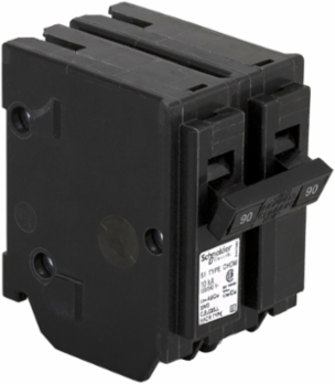

Schneider Electric CHOM290 Mini Circuit Breaker 90A 2 Pole 120/240V AC 10kA Plug-In UL
- MPN: CHOM290
- UPC: 785901648130
- PPN: SCH-CHOM290
CAD
$130.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 90 A at 120/240 VAC. CHOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.
Documentation & Downloads
Specifications
Additional
- Amperage
- 90 A
- Voltage
- 120/240 V AC
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- Standard
- Wire Range
- 4 AWG to 2/0 AWG copper/aluminum
- Height
- 3.13 in
- Depth
- 2.98 in
- Certification
- CSA certified
- RoHS Exemption
- Yes
- Reach Regulation
- Contains SVHCs above threshold
- Mercury Free
- Yes
- Product Type
- Miniature circuit-breaker
Poles2
Short-Circuit Current10 kA
Mounting ModePlug-on
Electrical ConnectionScrew clamp terminals
Ambient Air Temperature for Operation40 °C (104 °F)
Width2.0 in
Number of Spaces Required2
RoHS ComplianceCompliant
China RoHSPro-active declaration (out of legal scope)
Toxic Heavy Metal FreeYes
Product RangeHomeline
Country of OriginMexico
