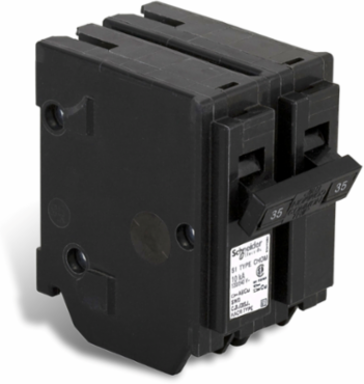

Schneider Electric CHOM235 Homeline Miniature Circuit Breaker, 35A, 2 Pole, 120/240V AC, 10kA AIR
- MPN: CHOM235
- UPC: 785901045212
- PPN: SCH-CHOM235
- UNSPSC: 39121601
CAD
$40.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 35A at 120/240VAC. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. CHOM Homeline miniature circuit breakers are CSA certified. NEMA 4 enclosure.
Features
- Engineered explicitly for the Canadian market, this CHOM235 plug-on breaker is designed exclusively for installation within Canadian HomeLineTM loadcentres. This precise mechanical design avoids formatting or fitting errors on the job site, giving residential electricians and DIY homeowners a seamless, code-compliant drop-in fit.
- Delivering 35 Amps of continuous current across a 2-pole configuration, this 120/240V breaker occupies two full panel spaces to power dedicated double-pole circuits. It bridges the gap between smaller household runs and massive appliances, serving as the perfect protection profile for specific sub-panels, central air units, or mid-sized electric vehicle (EV) charging stations
- Fully certified with an HACR (Heating, Air-Conditioning, and Refrigeration) rating, this thermal-magnetic circuit breaker is engineered to tolerate the high initial current surges produced by heavy motor startups. By naturally absorbing temporary inrush spikes without compromising overcurrent sensitivity, it eliminates annoying nuisance trips during seasonal temperature shifts.
- Outfitted with industrial-grade box screw clamp terminals, the breaker accepts a broad wire gauge range from 8 AWG up to 2 AWG in either copper or aluminum conductors. The heavy-duty terminal clamps maintain persistent mechanical pressure over time, preventing thermal loosening, resistance tracking, and wire pull-outs in high-vibration structural frames.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P
Line Rated Current35 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 8...AWG 2 aluminium/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1308001EN
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
