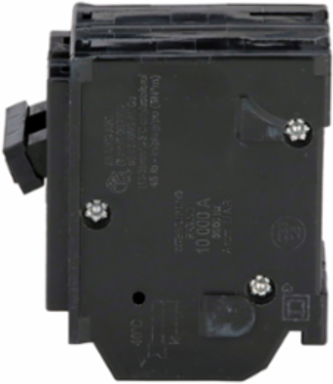

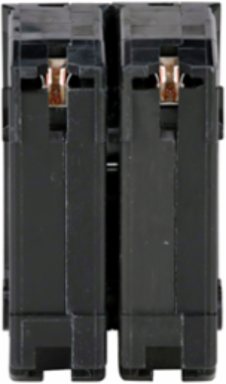

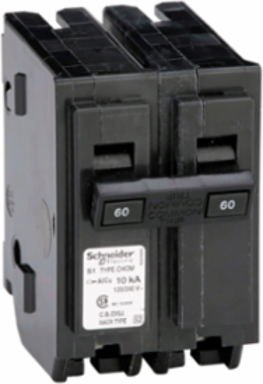

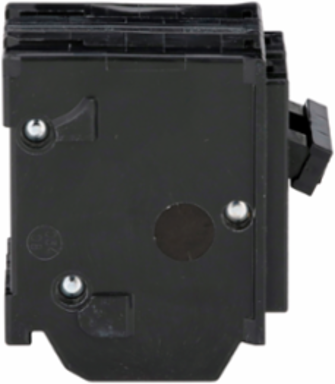

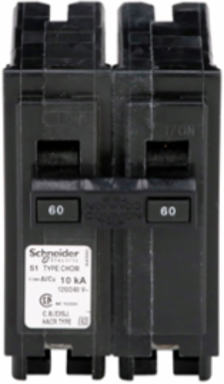

Schneider Electric CHOM260 Homeline Miniature Circuit Breaker, 60A, 2 Pole, 120/240V AC, 10 kA
- MPN: CHOM260
- UPC: 785901648062
- PPN: SCH-CHOM260
CAD
$84.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 60 A at 120/240 VAC. CHOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- The CHOM260 is a 60-Amp, 2-pole Homeline circuit breaker designed to provide simultaneous overcurrent protection for both "hot" legs of a 120/240V AC circuit. It is the standard heavy-duty solution for high-demand residential applications, such as sub-panel feeders, large electric furnaces, or high-capacity EV charging stations.
- Engineered with an internal common-trip mechanism, the CHOM260 ensures that if one leg of the circuit experiences a fault, both poles trip at exactly the same time. This prevents "single-phasing" a dangerous condition where an appliance remains partially energized protecting your expensive motors and heating elements from burnout and reducing the risk of electrical fires.
- This breaker is designed specifically for Square D Homeline (Canadian) load centers. It utilizes a 2-inch wide (two 1-inch spaces) plug-on design for a fast and secure connection to the bus bar. Note: It is not compatible with Square D QO (Blue Label), Siemens, Eaton, or GE panels.
- The CHOM260 features robust box-lug terminals that provide high-torque clamping for both copper and aluminum conductors. Rated for wire sizes up to #2 AWG, these terminals ensure a gas-tight, vibration-resistant connection that maintains electrical integrity even under the high thermal loads associated with 60-Amp service.
- Designed by Schneider Electric, the CHOM260 features a high-speed "Quick-Make, Quick-Break" mechanism. This design minimizes internal arcing during the switching process, which significantly extends the contact life of the breaker and ensures reliable performance over decades of residential use.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P
[In] Rated Current60 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 8...AWG 2 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
