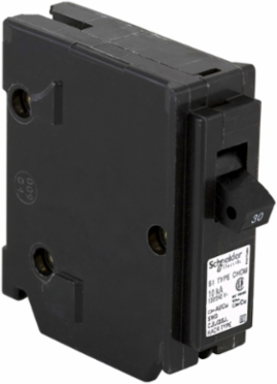

Schneider Electric CHOM130 Mini circuit breaker, Homeline, 30A, 1 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Mini circuit breaker, Homeline, 30A, 1 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
  • MPN: CHOM130
  • UPC: 785901647393
  • PPN: SCH-CHOM130

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$15.42/ EA

    Description

    CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 30 A at 120/240 VAC. CHOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.

    Specifications

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Mercury Free
    Yes
    Eu Rohs Directive
    Compliant
    Rohs Exemption InformationYes
    Toxic Heavy Metal FreeYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Specifications

    Circuit Breaker Application
    HACR rated
    Circuit Breaker Type
    standard
    Range Of Product
    Homeline
    Electrical Connection
    screw clamp terminals
    Product Or Component Type
    miniature circuit-breaker
    Mounting Modeplug-on
    Short-Circuit Current10 kA
    Poles Description1P
    [In] Rated Current30 A
    [Ue] Rated Operational Voltage120/240 V AC

    Complementary

    Number Of Spaces Required
    1
    Awg GaugeAWG 14...AWG 8 aluminum/copper

    Environment

    Product Certifications
    CSA
    Ambient Air Temperature For Operation40 °C
