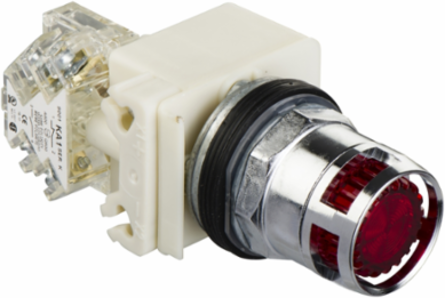

Schneider Electric 9001K3L38RH13 Harmony Illuminated Push-Button, 30mm, Red, 120V, IP66
- MPN: 9001K3L38RH13
- UPC: 785901179504
- PPN: SCH-9001K3L38RH13
CAD
$231.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Cad Overall Depth
- 106 mm
- Cad Overall Width
- 54 mm
Cad Overall Height42 mm
Size30 mm
Complementary Attributes
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13
Important Information Attributes
- Light Block Supply
- direct, full voltage or resistor
- Operator Profile
- flush, red flush, unmarked
- Terminals Description Iso N°1
- (13-14-11-12)OF, (13-14-11-12)OF
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Bezel Material
- metal
- Compatibility Code
- 9001K
- Contacts Material
- silver alloy contacts
- Device Short Name
- 9001K
- Mounting Diameter
- 30 mm
- Operator Additional Information
- metal guard
- Positive Opening
- without
- Product Or Component Type
- illuminated push-button
- Range Of Product
- Harmony 9001K
- Shape Of Screw Head
- cross slotted
- Shock Resistance
- 50 gn IEC 60068-2-27
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2503027EN
- [Ie] Rated Operational Current
- 0.55 A 125 V, DC-13, A600-Q600 NEMA
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Us] Rated Supply Voltage
- 120 V120 V AC/DC
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509035
Light Sourcebulb, incandescent
Certificate AgencyNEMA, UL 508
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Bulb BaseBA 9s
Contact Operationstandard
Contacts Type And Composition1 C/O
Mechanical Durability5000000 cycles
Operating Positionany position
Overvoltage Categoryclass II conforming to IEC 61140
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityNo
Shape Of Signaling Unit Headoctagonal
Sustainable PackagingYes
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Icm] Rated Short-circuit Making Capacity12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA
[Ith] Conventional Free Air Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Cap/Operator Or Lens Colourred
Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
Package Weight(Lbs)226.800 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
