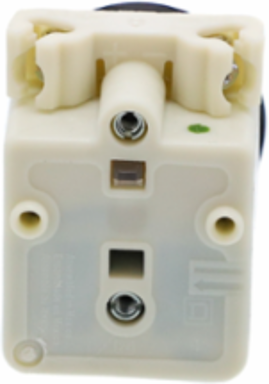

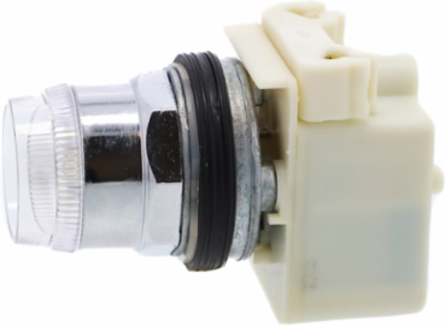

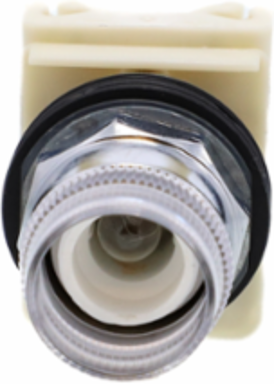

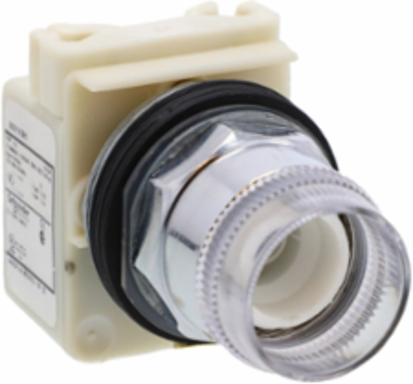

Schneider Electric 9001K1L1 Harmony Illuminated Push Button 30 mm Spring Return 110-120V
- MPN: 9001K1L1
- UPC: 785901005605
- PPN: SCH-9001K1L1
CAD
$202.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This illuminated push button from Schneider Electric is designed for reliable operation within automation and control systems. Featuring a spring return mechanism, it ensures that the interface returns to its original position after activation, enhancing usability and safety. Operating at 110-120V, this 30 mm device not only provides a clear visual indication through its illumination but also integrates seamlessly into various pilot applications, making it an ideal choice for modern control panels. With a focus on durability and performance, this push button stands out as a vital component for efficient and effective control solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Light Block Supply
- via transformer, via integral transformer
- [Ie] Rated Operational Current
- 10 A, AC-15, 10 A, DC-13
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- metal
- Contacts Type And Composition
- without contact block
- Light Source
- incandescent bulb
- Operator Additional Information
- plastic guard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony 9001K
- Supply Frequency
- 50...60 Hz
- Type Of Operator
- spring return
- Pep Code
- ENVPEP2503027EN
- Cap/Operator Or Lens Colour
- without cap
- Package Weight(Lbs)
- 235.868 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA LR 25490 class 3211 03, NEMA, UL listed file E42259 CCN NKCR, CE
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Bulb BaseBA 9s
Device Short NameK
Mounting Diameter30 mm
Operator Profileflush
Product Or Component Typehead for illuminated push-button
ReturnabilityNo
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage110...120 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/6/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
