Balluff

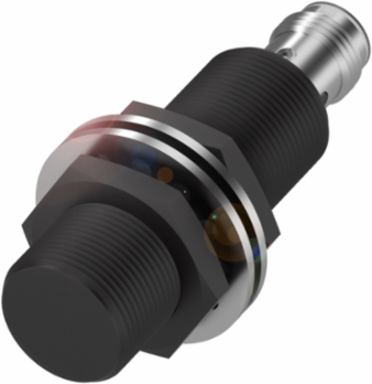

Balluff BES M18EI-PSC72B-S04G-S03 Stainless Steel Inductive Sensor Ø 18 x 65 mm, PNP NO, IP67

Stainless Steel Inductive Sensor Ø 18 x 65 mm, PNP NO, IP67
  • MPN: BES M18EI-PSC72B-S04G-S03
  • PPN: BAL-BES056C

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$215.43/ EA

Description

Engineered for precision and durability, the inductive full-metal sensors from Balluff are designed to excel in demanding environments. With a robust stainless steel housing and a PTFE-coated sensing surface, these sensors are built to withstand harsh conditions, featuring an impressive ambient temperature range of -25 to 70 °C and a maximum pressure rating of 40 bar. The M18EI-PSC72B-S04G-S03 model is rated IP67, ensuring reliable performance even in wet or dusty environments, while its PNP normally open switching output and a switching frequency of 250 Hz make it an ideal choice for automation and control applications. With easy flush mounting and a compact design of Ø 18 x 65 mm, this sensor integrates seamlessly into various systems, making it a versatile solution for your sensing needs.

Specifications

Operating Voltage
10-30 VDC
Switching Frequency
250 Hz
Switching Output
PNP Normally open (NO)
Connection
M12x1-Male, 4-pin
Housing Material
Stainless steel, coated, PTFE
IP Rating
IP67
Installation
Flush mounting
Pressure Rating Max40 bar
Range7.2 mm
Dimension 8 18 x 65 mm
Material Sensing SurfaceStainless steel, coated, PTFE
Ambient Temperature-25 to 70 0C
Approval/ConformityCE, cULus, EAC, WEEE
StyleM18x1
