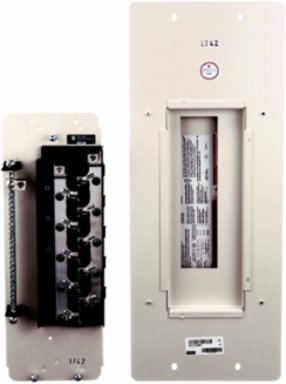

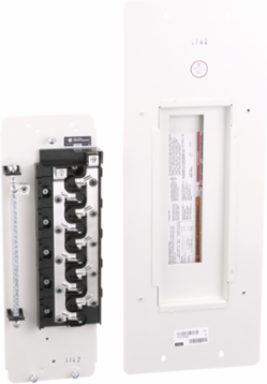

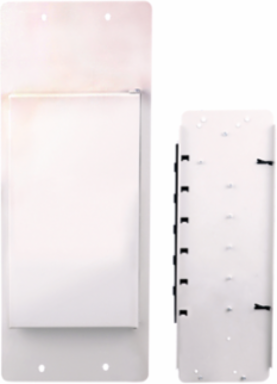

Schneider Electric HFLCIC20AD Homeline Loadcentre Insert, 20 Tandem Circuits, 587mm H x 200mm W x 78mm D

MPN: HFLCIC20AD
UPC: 785901616856
PPN: SCH-HFLCIC20AD

$682.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This accessory is a Homeline fusible loadcentre insert. The original manufacturer for this insert is CEB. The original main lug loadcentre catalogue number is NHP12-633. Maximum number of standard circuits is 10 while tandem is 20.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Homeline

Product Or Component Type	Loadcentre

Complementary

Enclosure Type	CEB NHP12-633 587 mm 200 mm 78 mm \|\| CEB NHP8-635-2 587 mm 200 mm 78 mm
Number Of Circuits	10

Number Of Tandem Circuit Breakers	20
Number Of Spaces	10

Offer Sustainability

China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1403002
Toxic Heavy Metal Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
