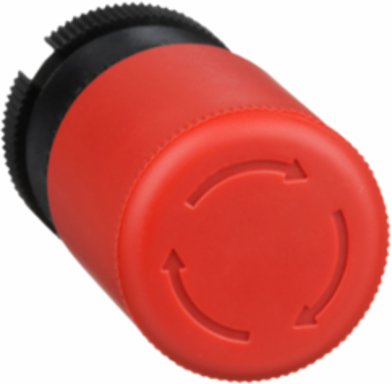

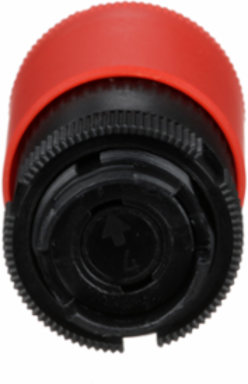

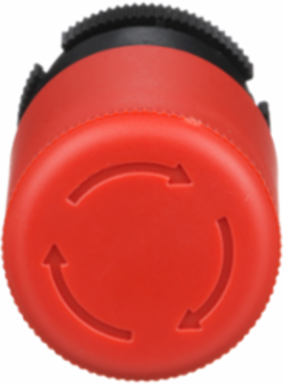

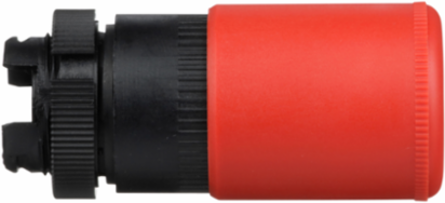

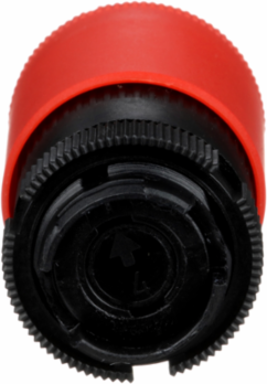

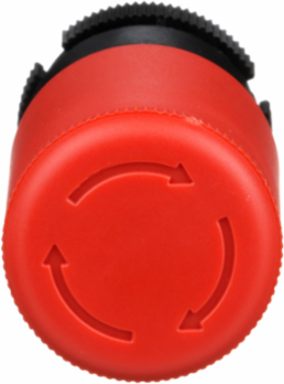

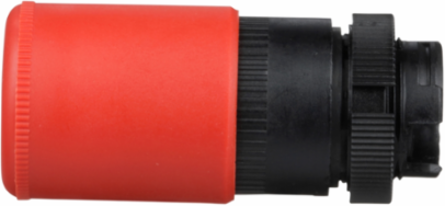

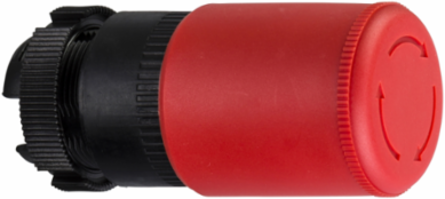

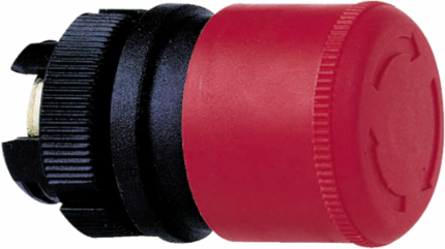

Schneider Electric ZA2BS834 Harmony XAC Red Mushroom Emergency Stop Button 30mm IP65

MPN: ZA2BS834
PPN: SCH-ZA2BS834

$97.72

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

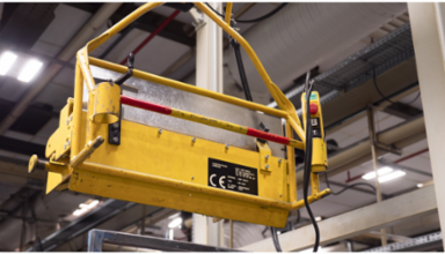

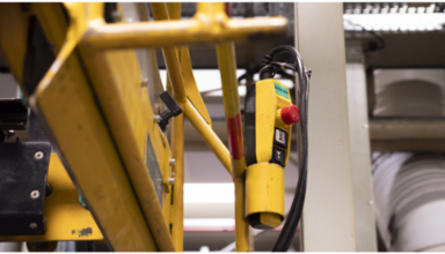

Engineered to drop seamlessly into standard 22mm panel cutouts, this Harmony XAC series switch body ensures fast, hassle-free installation into your pre-existing machinery or pendant stations. Standardized sizing eliminates the need for expensive custom drilling or panel modifications, allowing maintenance technicians to quickly swap out damaged components and minimize costly production downtime.
Featuring a positive trigger-action latch, this emergency stop remains securely locked in the open position the instant it is struck. To restore the circuit, operators must perform a deliberate physical "turn-to-release" motion, preventing dangerous accidental machine restarts and ensuring your facility maintains strict compliance with industrial safety and lockout protocols.
Designed with an oversized 30mm mushroom profile and a vibrant, high-contrast red finish, this operator provides an unmistakable visual target for immediate shutdown during a critical process failure. The highly ergonomic shape allows factory workers wearing heavy-duty protective gloves to strike and actuate the switch effortlessly, drastically reducing response times when machine or personnel safety is at immediate risk.
Built to thrive in the harshest industrial environments, this Schneider Electric push-button head delivers robust IP65-rated protection against heavy dust infiltration and low-pressure water jets. Combined with exceptional vibration resistance and an extreme -25 C to 70 C operating temperature range, it guarantees highly reliable emergency circuit control in heavy manufacturing plants, outdoor installations, and demanding OEM equipment.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60204-32, IEC 60947-5-5, IEC 62262
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0327785075
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.2239701493
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308018EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Marking	unmarked
Operator Profile	red mushroom Ø 30 mm
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XAC
Sale Per Indivisible Quantity	1
Sustainable Packaging	No
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 70% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; CN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.0139677612, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0354901493, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Mounting Location	front of enclosure
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	head for emergency switching off push-button
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Pep Code	ENVPEP2308018EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; CN
Package Weight(Lbs)	42.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.3062065672
Environmental Disclosure	ENVPEP2308018EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	XACA..
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308018EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2308018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
