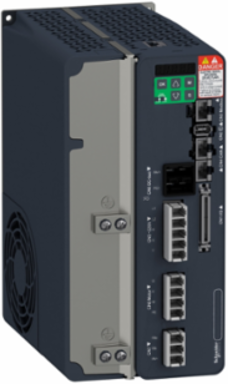

Schneider Electric LXM28EU45M3X Lexium28 EtherCAT drive, 4.5kW, 3 phase 230V
Schneider Electric LXM28EU45M3X Lexium28 EtherCAT drive, 4.5kW, 3 phase 230V
- MPN: LXM28EU45M3X
- PPN: SCH-LXM28EU45M3X
- UNSPSC: 39122003
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3893.46/ EA
Description
Lexium28 EtherCAT drive, 4.5kW, 3 phase 230V
Features
- Lexium 28 and Lexium BCH2 is the optimized servo bundle for all motion control solutions
- Cost effective
- Energy efficient
- Embedded safety
Specifications
Communications & Management Attributes
- Communication Interface
- EtherCAT, Integrated
Conformance Attributes
- Product Certifications
- CE, cULus
StandardsIEC 61800-5-1
Complementary Attributes
- Line Rated Current
- 22.8 A
- Maximum Leakage Current
- 1.55 mA
Maximum Current IRMS61.0 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- spring terminal 6 mm², AWG 10 L1-L2), spring terminal 6 mm², AWG 10 R, S, T), spring terminal 6 mm², AWG 10 U, V, W, PE), spring terminal 6 mm², AWG 10 PA/+, PBe)
- Marking
- CE, cULus
- Safety Level
- SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
- Supply Voltage Limits
- 200-255 V three phase, 170-255 V single phase
- Carbon Footprint Of The Distribution Phase A4
- 0.5160810811, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0387459459, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 9 218 kg CO2 eq., 9218.1241963174
- Local Data Status
- Publishable
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Connector Type
- RJ45 CN4)EtherCAT
- Control Signal Type
- servo motor encoder feedback CN2
- Electrical Isolation
- between power and control
- EMC Filter
- without EMC filter
- Format Of The Drive
- compact housing
- Method Of Access
- slave
- Nominal Power
- 4.5 kW 220 V 8 kHz
- Operating Position
- vertical
- Package Weight Lbs
- 4 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium 28
- Safety Function
- STO (safe torque off), Integrated
- Signalling Function
- servo status and fault codes five 7-segment display units
- Supply Voltage
- 200-240 V three phase
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 9 289 kg CO2 eq.
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Maximum In Rated Current2
- 22.8 A
- Stocking Flag
- Y
- Pep Code
- ENVPEP1409001EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- To control AC-servo motors BCH2 100% of the time for 10 years
- Energy Model Manufacturing A1 A3 2
- Energy model used: China
- Energy Model Use B6 2
- Electricity mix; AC; < 1kV; EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
EMC Filter Compatibilitytype 020, type 022
Protection Typeagainst reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
Status Led1 LED (Red) DC bus energized, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 2 LEDs (Yellow) Link (Link Status), 2 LEDs (Yellow) activity
Us Rated Supply Voltage2200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 230 V
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.8286486486
Carbon Footprint Of The Manufacturing Phase A1 To A368 kg CO2 eq., 68.0351351351
Us Rated Supply Voltage5200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase
Local Publishable Date2026-01-12
ServiceabilityYes
Field Service DivisionIDIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionAdvanced
Market SegmentationIndustrial
Continuous Power4500 W 220 V
Device Short NameLXM28E
Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Field Weakeningfalse
Line Current17.9 A 147.1 % 220 V, three phase
Network Frequency47.5...63 Hz
Nominal Voltage220 V three phase
Overvoltage CategoryIII
Phasethree phase
Product Or Component Typemotion servo drive
ReturnabilityNo
Shock Resistance10 gn, type I IEC 60721-3-3
Supply Frequency50/60 Hz - 5...5 %
Supply Voltage Descriptionthree phase 220 V AC 50...60 Hz
Switching Frequency8 kHz
Transmission Rate100 Mbit/s EtherCAT
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Medium DescLexium28 EtherCAT drive, 4.5kW, 3 phase 230V
Product Kit IdentifierN
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional Unit Unitunité (unit)
Energy Model Installation A5 2Electricity mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity mix; AC; < 1kV; EU-27
Maximum In Rated Current522.8 A
Environment Attributes Main
- Take Back
- No, Nej
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 9288.5428071282
- Ambient Air Temperature For Storage
- -25-65 °C
- Environmental Disclosure
- ENVPEP1409001EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1409001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Product Compatibilityservo motor BCH2 180 mm, 3 4500 W, servo motor 180 mm, 2 3500 W
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Circularity ProfileENVEOLI1409001EN
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % without condensation
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase
- Range Of Product
- Lexium 28
Product Or Component Typemotion servo drive
Output Attributes
- Discrete Output Number
- 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
- Continuous Output Current
- 22.9 A 8 kHz
- Discrete Output Voltage
- 12...24 V DC
Output Current 3s Peak61 A 220 V, 61 A
Discrete Output Logicpositive or negative CN1)
Output Voltage<= power supply voltage
Surge Protection And Filtering Attributes
- EMC Filter Compatibility
- type 020, type 022
EMC Filterwithout EMC filter
Input Attributes
- Discrete Input Number
- 8 programmable CN1), 2 fast capture CN1), 1 safety function STO CN9)
- Discrete Input Voltage
- 24 V DC logic
Discrete Input Logicpositive or negative CN1)
Specifications
- Depth
- 186 mm
