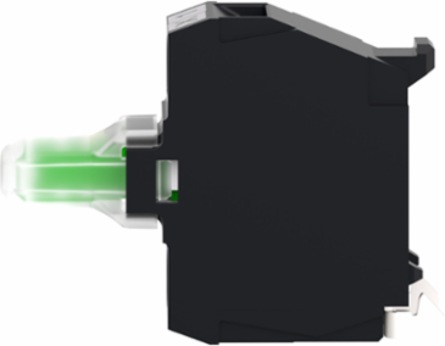

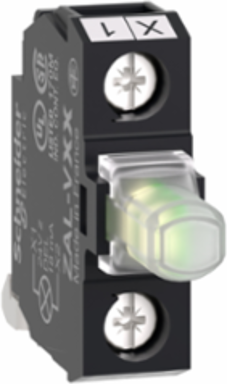

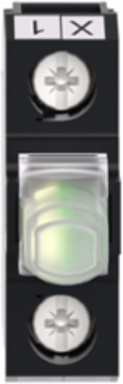

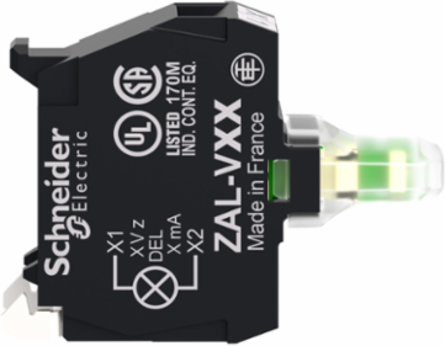

Schneider Electric ZALVG1 Harmony XAL Light Block, 22mm, Universal LED, 48-120V AC, IP20
- MPN: ZALVG1
- PPN: SCH-ZALVG1
CAD
$49.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XAL, white light block with integral LED is supplied with 48V to 120V AC. It is compatible with Harmony XB5, 22mm control and signaling units. This light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit in a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Range Of Product
- Harmony XAL
- Sale Per Indivisible Quantity
- 5
- Device Short Name
- ZALV
Mounting Of Blockrear mounting
Product Or Component Typelight block
Light Source Colourwhite
[Us] Rated Supply Voltage48...120 V AC
Complementary
- Light Source
- universal LED
- Electrical Composition Code
- MR1 || PR1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- Surge Withstand
- 1 kV IEC 61000-5-1
- Signalling Type
- steady
- Assembly Style
- for customer assembly
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Light Block Supplydirect
Net Weight0.015 kg
Current Consumption14 mA
Service Life100000 h at rated voltage and 25 °C
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
Supply Voltage Limits40-132 V AC
Tightening Torque0.8-1.2 N.m EN 60947-1
Bulb Baseintegral LED
Environment
- Product Certifications
- UL listed || CSA
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration EN/IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP20 IEC 60529
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsEN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
