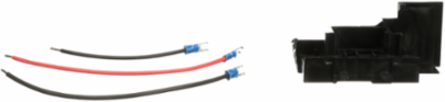

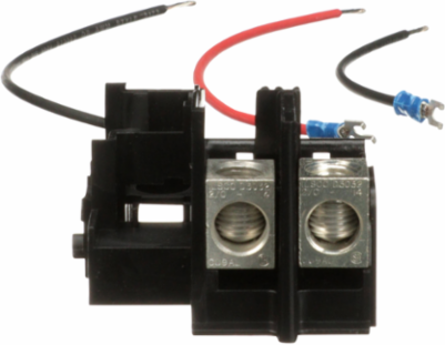

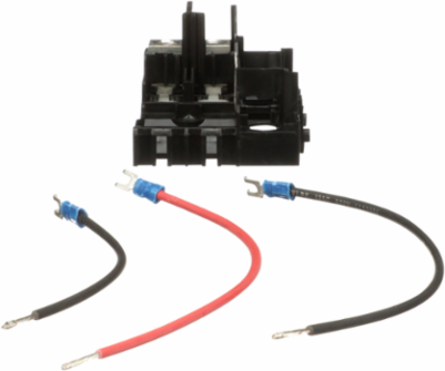

Schneider Electric QON2L70 Load center accessory, QO, mounting base, 1 phase, 2 spaces, 70A main lugs, OEM

Load center accessory, QO, mounting base, 1 phase, 2 spaces, 70A main lugs, OEM
Load center accessory, QO, mounting base, 1 phase, 2 spaces, 70A main lugs, OEM
Load center accessory, QO, mounting base, 1 phase, 2 spaces, 70A main lugs, OEM
Load center accessory, QO, mounting base, 1 phase, 2 spaces, 70A main lugs, OEM
Load center accessory, QO, mounting base, 1 phase, 2 spaces, 70A main lugs, OEM
  • MPN: QON2L70
  • UPC: 785901029410
  • PPN: SCH-QON2L70

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$114.40/ EA

Description

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 70A 240 VAC 1 phase 2 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 2 spaces. This mounting base will accept only QO plug on circuit breakers. The QON mounting base is UL component recognized.

Specifications

Complementary

Product Certifications
UL || CSA
Awg Gauge
AWG 14...AWG 4 copper || AWG 12...AWG 3 aluminum
Wiring Configuration
2-wire
Net Weight
0.700 kg
Height69 mm
Width107 mm
Depth48 mm

Specifications

Short-Circuit Current
10 kA
[Ue] Rated Operational Voltage
120/240 V AC
Product Or Component Type
mounting base
Loadcentre Type
Main lugs
Range Of ProductQO
[In] Rated Current70 A
Number Of Spaces2
Network Number Of Phases1 phase

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2101006
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
