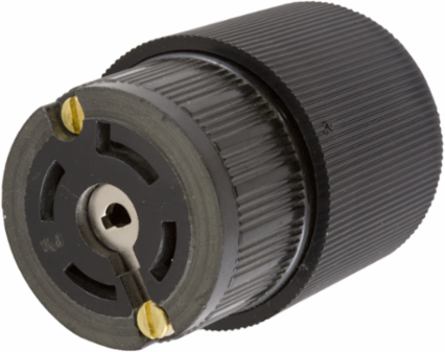

Hubbell Wiring Device-Kellems HBL45935 Twist-Lock® VariLoad Female Connector, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire, Black
- MPN: HBL45935
- UPC: 783585238159
- PPN: HBL-HBL45935
- UNSPSC: 39121421
CAD
$287.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Variload®, Female Connector Body, 20A 3-Phase Wye 120/208V AC only - 400Hz, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black Non Metallic Body, Unique Center Pin.
Features
- Heat resistant thermoset construction
- Non-interchangable center pin configuration to be designated to different circuits
- Unique Center Pin
Specifications
Additional
- Amperage
- 20 A
- Frequency
- 400 Hz
- Number of Wires
- 5-Wire Grounding
- Terminal Accommodation
- #14 AWG - #10 AWG stranded copper wire
- Cord Diameter
- 0.625-1.00 in (15.9-25.4 mm)
- Width
- 2.13 in
- Size
- 2.13 in x 2.13 in x 3.79 in
- Material
- Composite (Nonmetallic Thermoset)
- Contacts Material
- Brass
- Assembly Screws Material
- Brass
- Compliance
- UL 498 Listed
- Country of Origin
- US
Voltage120/208 V AC 3-Phase WYE
Poles4-Pole
Dielectric Voltage2000 V minimum
Operating Temperature-40°C to 75°C
Length2.13 in
Height3.79 in
Weight0.5 lb
Cord Clamp MaterialZinc Plated Steel
Terminal Screw MaterialBrass
FlammabilityHB or better per UL 94 or CSA 22.2 No. 0.6
ColorBlack
