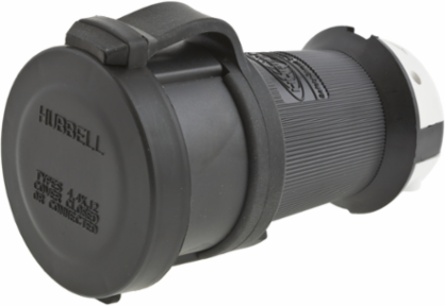

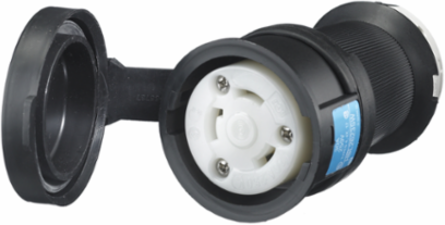

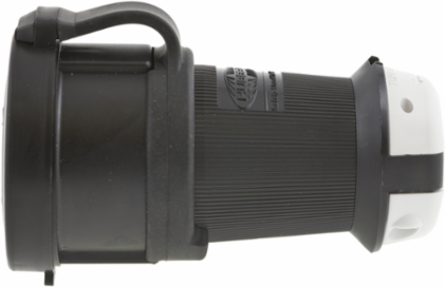

Hubbell Wiring Device-Kellems HBL2623SW Twist-Lock Watertight Safety Connector, 30A, 250V AC, 2 Pole, 3 Wire Grounding
- MPN: HBL2623SW
- UPC: 783585231709
- PPN: HBL-HBL2623SW
- UNSPSC: 39121421
CAD
$178.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud® Connector, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2623SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- Country of Origin
- United States
- Dimensions
- 4.4 in x 2.57 in x 2.57 in
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - V0 per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Amperage Rating
- 30 A
- Color
- Black, White
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Special Features
- Shrouded Watertight Construction
- Type
- Connector
- Voltage Rating Description
- 250 V
- Width
- 2.57 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L6-30R
- Number Of Wires
- 3-Wire
- Phase
- Single Phase
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A130
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585231708
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextEntertainment Product Solution Guide
General Literature Asset 3 Display TextPulp & Paper Solutions
Current / Amperage Rating30 A
Height2.57 in
Length4.4 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsWatertight
NEMA RatingL6-30R
Size4.4 in x 2.57 in x 2.57 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating250 V
Weight0.55 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#16 AWG to #8 AWG
Description - InvoiceLKG WT S/SHRD CONN, 30A 250V, L6-30R
Harmonization Code8536690200
MSDS FlagNo
Cord Range0.360"-0.930" (9-24)
Cord Diameter0.325-0.930 in
MaterialComposite
BOX SIZE5.800x18.800x8.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585231709
Case Weight7.450 lb.
Lowest Level UOMEach
Pallet Height46.400 in
Pallet Weight715.200 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
ListingsUL 498;Fed.Spec. W-C-596;CSA C22.2 No.42;UL Listed;CSA Certified to Type 4, 4X and Type 12
