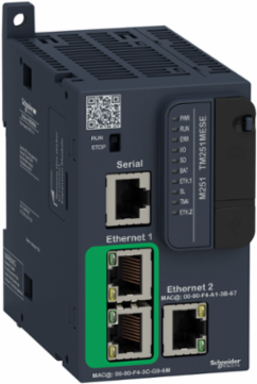

Schneider Electric TM251MESE Modicon M251 Logic Controller, 24V DC, IP20, 8MB Program Memory
- MPN: TM251MESE
- PPN: SCH-TM251MESE
CAD
$834.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon M251 Logic Controller, 24V DC, IP20, 8MB Program Memory
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Italy, Mexico, United States
Depth95 mm
Communications & Management Attributes
- Communication Port Protocol
- USB port USB - SoMachine-Network, non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Communication Servicedownloading, IEC VAR ACCESS, Modbus TCP client, Modbus TCP server, Modbus TCP slave device, monitoring, NGVL, programming, updating firmware, SMS notifications, DHCP client Eth1), DHCP server Eth2), Ethernet/IP originator Eth2), Ethernet/IP target Eth1, Eth2), Ethernet/IP scanner Eth2), Modbus TCP I/O Scanner and Messaging Eth2), FDR, FTP client/server, SNMP client/server, SQL client, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
Complementary Attributes
- Integrated Connection Type
- USB port mini B USB 2.0, non isolated serial link serial RJ45 RS232/RS485, dual-port Ethernet 1 RJ45, Ethernet port Ethernet 2 RJ45
Maximum Number Of Connections8 Modbus server, 8 Modbus client, 16 Ethernet/IP target, 4 FTP server, 10 web server, 8 SoMachine protocol
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Application Structure
- 4 cyclic master tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks
- Cycle Time
- 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
- Insulation
- non-insulated between supply and internal logic, between supply and ground 500 V AC
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Resistance To Electrostatic Discharge
- 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s 3-3 m USB
- Certificate Agency
- cULus, CE, UKCA, DNV-GL, ABS, LR
- Number Of Server Device(S)
- 16 EtherNet/IP, 64 Modbus TCP
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Data Backed Up
- 128 MB built-in flash memory backup of user programs
- Immunity To Microbreaks
- 10 ms
- Marking
- CE
- Power Consumption In W
- 32.6-40.4 W with max number of I/O expansion module)
- Product Or Component Type
- logic controller
- Realtime Clock
- with
- Shock Resistance
- 15 gn 11 ms
- Supply Voltage Limits
- 20.4-28.8 V
- Web Services
- web server
- Pep Code
- ENVPEP1401009EN
- Width Nominal
- 54 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Clock Drift<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
Data Storage Equipment<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
Execution Time For 1 Kinstruction0.3 ms event and periodic task, 0.7 ms other instruction
Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL, 1 LED (red) for bus fault on TM4 (TM4), 1 LED (green) for Ethernet activity (ETH1), 1 LED (green) for Ethernet activity (ETH2)
Port EthernetEthernet 1 10BASE-T/100BASE-TX - 2 copper cable, Ethernet 2 10BASE-T/100BASE-TX - 1 copper cable
Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
Vibration Resistance3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
Maximum Number Of I/O Expansion Module7 (local I/O-Architecture), 14 (remote I/O-Architecture)
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1401009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connectionremovable screw terminal block power supply pitch 5.08 mm)
Inrush Current50 A
Memory Capacity64 MB system memory RAM
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M251
ReturnabilityYes
Supplyserial)serial link supply 5 V, <200 mA
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal90 mm
[Us] Rated Supply Voltage24 V DC
Package Weight(Lbs)371.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1401009EN
- Ip Degree Of Protection
- IP20 with protective cover in place
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1401009EN
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1401009EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticNo
Storage Altitude0-3000 m
