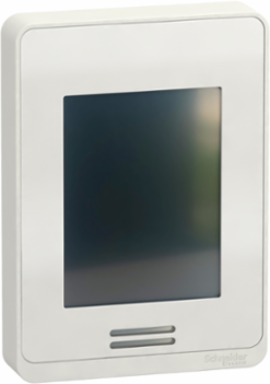

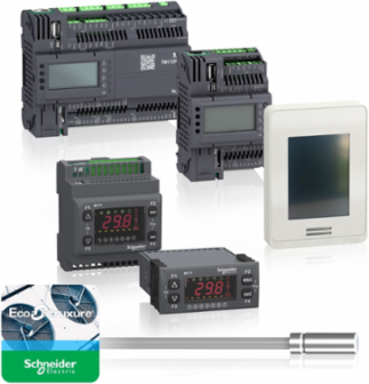

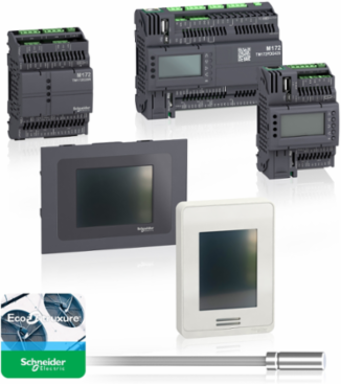

Schneider Electric TM172DCLWT Modicon M172 Color Touchscreen Display with Temperature Sensor 120mm Height
- MPN: TM172DCLWT
- PPN: SCH-TM172DCLWT
CAD
$302.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon M172 Color Touchscreen Display from Schneider Electric is a sophisticated solution designed for intuitive and interactive control in various industrial applications. With its striking 120mm height and integrated temperature sensor, this display ensures precise monitoring and easy navigation of system parameters. The vibrant color interface enhances user experience, allowing operators to quickly access important data and adjust settings as necessary. This combination of functionality and user-friendly design makes it an essential tool for improving operational efficiency and maintaining optimal environmental conditions in any setup.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, Mexico, Sweden, United States
Depth25 mm
Physical Attributes
- Color
- White
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Display Type
- LCD display, colour touchscreen
- Certificate Agency
- RCM, EAC, CE, cTUVus
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.5564190424006955
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.47941534440373
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1803026EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Display Resolution
- 320 x 240 pixels
- Product Or Component Type
- display module
- Returnability
- Yes
- Supply
- external source
- Total Lifecycle Carbon Footprint
- 65 kg CO2 eq.
- Upgradeability
- Yes
- Pep Code
- ENVPEP1803026EN
- Pep Verification Date
- 2025-12-12
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 14
- Width Nominal
- 86 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8524119000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Power Consumption In W3.2 VA, 1.3 W
Carbon Footprint Of The Distribution Phase [A4]0.1077883520775149, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01809601340449856, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]54 kg CO2 eq., 53.88395968948022
Local Publishable Date2026-01-12
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon M171/M172
Software Versionv6.2.5-6
Sustainable PackagingNo
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo communicate the controlled temperature by means of input probes, pressure and many other typical loads of HVAC installations and a 100% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh113.88
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal120 mm
[Us] Rated Supply Voltage24 V AC/DC
Package Weight(Lbs)255.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -30-50 °C, -30-50 °C
- Product Compatibility
- logic controller M171, logic controller M172
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Disclosure
- ENVPEP1803026EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-12-12
- Psr Version
- No PSR
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint65.04567844176665
Circularity ProfileENVEOLI1803026EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1803026EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- display module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Input Attributes
- Analogue Input Type
- NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C, NTC 10k temperature probe at 21 °C +/- 0.5 °C
