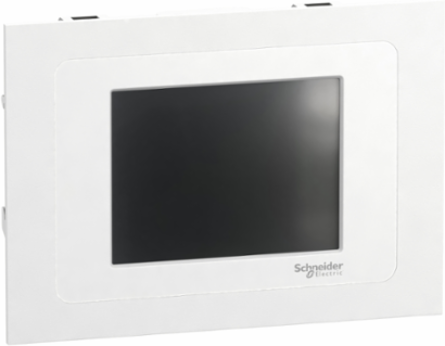

Schneider Electric TM172DCLFW Modicon M172 Color Touchscreen Display, 3.2 VA, 320x240 Pixels, IP65

MPN: TM172DCLFW
PPN: SCH-TM172DCLFW
UNSPSC: 32151703

$322.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon M172 Color Touchscreen Display by Schneider Electric is a highly functional interface designed to enhance user interaction with automation systems. Featuring a crisp resolution of 320x240 pixels, this display provides clear visuals, making it easy to monitor and control operations. With a power requirement of just 3.2 VA, it offers efficient performance while its IP65 rating ensures protection against dust and water, making it suitable for demanding industrial environments. This touchscreen display is an ideal solution for users seeking a reliable and intuitive way to manage processes effectively.

Features

Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
All of the features and functions you need to design and build machines more profitably are already embedded
Application Function Blocks reduce energy consumption and help to improve system efficiency
Stay connected everywhere with multiple BMS connectivity and web server embedded

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Italy
Depth	35 mm

Weight	204 g

Physical Attributes

Color	White

Complementary Attributes

Us Rated Supply Voltage	24 V AC/DC

Important Information Attributes

Display Type	colour touchscreen, LCD display
Certificate Agency	cURus, RCM, CE, CSA, EAC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.6 kg CO2 eq., 0.5564190424006955
Carbon Footprint Of The Manufacturing Phase A1 To A3	10 kg CO2 eq., 10.47941534440373
Local Data Status	Publishable
Return Indicator	Y
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Overvoltage Category	II
Product Or Component Type	display module
Returnability	Yes
Supply	external source
Total Lifecycle Carbon Footprint	65 kg CO2 eq.
Upgradeability	Yes
Database Version	2024-01
Height Nominal	96 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To communicate the controlled temperature by means of input probes, pressure and many other typical loads of HVAC installations and a 100% of the time for 10 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	113.88

Power Consumption In W	3.2 VA, 1.3 W
Carbon Footprint Of The Distribution Phase A4	0.1077883520775149, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.01809601340449856, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	54 kg CO2 eq., 53.88395968948022
Local Publishable Date	2026-08-06
Device Type	PLC System - PLC Component
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1803026EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Display Resolution	320 x 240 pixels
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon M171/M172
Software Version	v6.2.5-6
Sustainable Packaging	No
Updatability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	134 mm
Customs Code	8528593350
Packaging Weight In G	86
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	14

Environment Attributes Main

Ambient Air Temperature For Operation	-20-60 °C, -20-60 °C
Product Compatibility	logic controller M171, logic controller M172
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1803026EN
Environmental Disclosure	ENVPEP1803026EN
Ip Degree Of Protection	IP65 front panel:
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1803026EN
Pcr Version	PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-30-60 °C, -30-60 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	65.04567844176665
Directives	2014/30/EU - electromagnetic compatibility
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-12-12
Psr Version	No PSR
