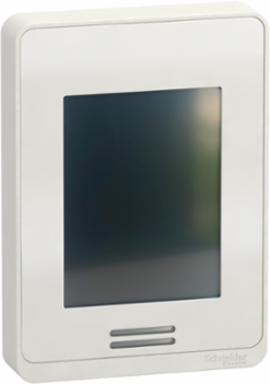

Modicon M172 Color TouchScreen Display with Temperature & Humidity Sensors
Schneider Electric

Schneider Electric TM172DCLWTH Modicon M172 Color TouchScreen Display with Temperature & Humidity Sensors

  • MPN: TM172DCLWTH
  • PPN: SCH-TM172DCLWTH

CAD

$399.32

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Experience enhanced control and monitoring with the Modicon M172 Color TouchScreen Display from Schneider Electric. This advanced display integrates both temperature and humidity sensors, providing real-time environmental data that is essential for various industrial applications. Its intuitive touchscreen interface simplifies user interaction, making it easy to navigate through settings and view critical information at a glance. With this device, you can ensure optimal performance and comfort in your operational environment, making it an invaluable asset for modern automation systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Italy, Mexico, Sweden, United States
Depth25 mm

Physical Attributes

Color
White

Important Information Attributes

Persona Type Ids
EU, OM, OM8, SI
Display Type
LCD display, colour touchscreen
Certificate Agency
cTUVus, EAC, RCM, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.6 kg CO2 eq., 0.5564190424006955
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
10 kg CO2 eq., 10.47941534440373
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1803026EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1929
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Market Segmentation
Industrial
Display Resolution
320 x 240 pixels
Product Or Component Type
display module
Returnability
Yes
Supply
external source
Total Lifecycle Carbon Footprint
65 kg CO2 eq.
Upgradeability
Yes
Pep Code
ENVPEP1803026EN
Pep Verification Date
2025-12-12
Psr Version
No PSR
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]
Electricity origin
Recyclability Potential In %
14
Width Nominal
86 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8524119000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Power Consumption In W3.2 VA, 1.3 W
Carbon Footprint Of The Distribution Phase [A4]0.1077883520775149, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01809601340449856, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]54 kg CO2 eq., 53.88395968948022
Local Publishable Date2026-07-12
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M171/M172
Software Versionv6.2.5-6
Sustainable PackagingNo
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo communicate the controlled temperature by means of input probes, pressure and many other typical loads of HVAC installations and a 100% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh113.88
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal120 mm
[Us] Rated Supply Voltage24 V AC/DC
Package Weight(Lbs)236.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Storage
-30-50 °C, -30-50 °C
Product Compatibility
logic controller M172, logic controller M171
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Ambient Air Temperature For Operation
0-50 °C
Environmental Disclosure
ENVPEP1803026EN
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2025-12-12
Psr Version
No PSR
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint65.04567844176665
Circularity ProfileENVEOLI1803026EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1803026EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
display module
Upgradeability
Yes
Range Of ProductModicon M171/M172

ETIM

ETIM 8
EC001412
ETIM 9EC001412

Input Attributes

Analogue Input Type
NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C, NTC 10k temperature probe at 21 °C +/- 0.5 °C, humidity probe 10...90 % without condensation 10...20 % +/- 10 %humidity probe 10...90 % without condensation 20...80 % +/- 5 %, humidity probe 10...90 % without condensation 80...90 % +/- 10 %
