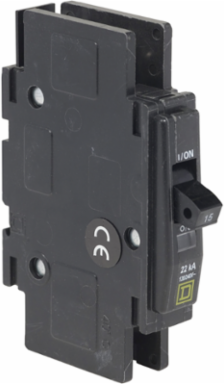

Square D QOU140VH Mini Circuit Breaker 40A 1 Pole 120/240V AC 22kA 4.05 Inch Height
Square D QOU140VH Mini Circuit Breaker 40A 1 Pole 120/240V AC 22kA 4.05 Inch Height
- MPN: QOU140VH
- UPC: 785901940678
- PPN: SCH-QOU140VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$177.95/ EA
Description
This Mini Circuit Breaker from Schneider Electric is designed to deliver reliable protection for your electrical systems, featuring a compact and efficient 1 Pole configuration suitable for 120/240V AC applications. With a current rating of 40A and a short-circuit current rating of 22kA, it offers robust performance to safeguard your circuits from overload and short-circuit conditions. Measuring just 4.05 inches in height, the QOU140VH is ideal for applications where space is at a premium, making it a versatile choice for power distribution in various settings. Whether for residential or commercial use, this circuit breaker exemplifies the quality and engineering excellence synonymous with Schneider Electric.
Specifications
- Current Rating
- 40 A
- Circuit Breaker Application
- HACR rated
- Tightening Torque
- 45 lbf.in
- Wire Size Range
- AWG 14...AWG 2 aluminum/copper
- Height
- 4.05 in
- Depth
- 2.95 in
- Type
- miniature circuit-breaker
- Mercury Free
- Yes
- Halogen Content
- Halogen free
- REACH Compliance
- Reference contains SVHC above threshold
- Warranty
- 18 months
Voltage120/240 V AC
Circuit Breaker Typestandard
Mounting Modeunit mount
Short-Circuit Current Rating22 kA
Width0.75 in
Electrical Connectionslotted box lugs, line side and load side
Product CertificationsIEC, UL listed, CSA
Toxic Heavy Metal FreeYes
RoHS ComplianceCompliant with Exemptions
China RoHS ComplianceOut of China RoHS scope, substance declaration
Range Of ProductQOU
