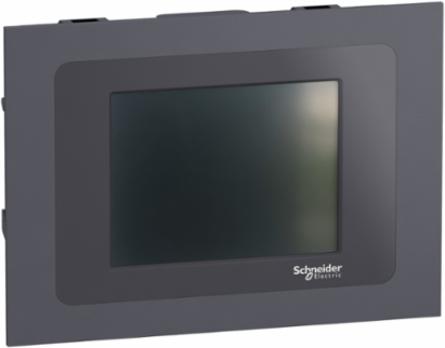

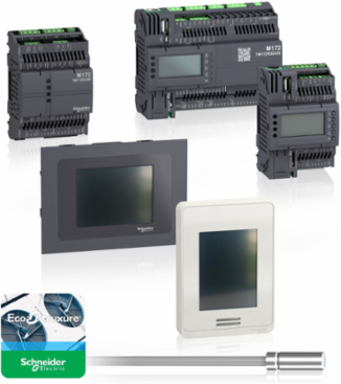

Schneider Electric TM172DCLFG Modicon M172 Color Touchscreen Display 320x240, IP65, 0.175 kg

MPN: TM172DCLFG
PPN: SCH-TM172DCLFG

$322.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon M172 Color Touchscreen Display from Schneider Electric offers a vibrant 320x240 resolution, ideal for providing clear and intuitive interfaces for your control systems. Designed with an IP65 rating, this display is protected against dust and water, ensuring reliable performance in a variety of industrial environments. Weighing only 0.175 kg, it is lightweight and easy to integrate into your existing setup, making it an excellent choice for enhancing user interaction and monitoring in automated processes. This touchscreen display effectively blends functionality with effortless usability, allowing operators to navigate systems easily and efficiently.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Italy, United States

Depth	35 mm

Physical Attributes

Color	Gray

Important Information Attributes

Persona Type Ids	EU, OM, OM8, SI
Display Type	LCD display, colour touchscreen
Certificate Agency	RCM, CE, cURus, EAC, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.6 kg CO2 eq., 0.5564190424006955
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	10 kg CO2 eq., 10.47941534440373
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1803026EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Display Resolution	320 x 240 pixels
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon M171/M172
Software Version	v6.2.5-6
Sustainable Packaging	No
Updatability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To communicate the controlled temperature by means of input probes, pressure and many other typical loads of HVAC installations and a 100% of the time for 10 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
Recyclability Potential In %	14
Width Nominal	134 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Power Consumption In W	1.3 W, 3.2 VA
Carbon Footprint Of The Distribution Phase [A4]	0.1077883520775149, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.01809601340449856, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	54 kg CO2 eq., 53.88395968948023
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Overvoltage Category	II
Product Or Component Type	display module
Returnability	No
Supply	external source
Total Lifecycle Carbon Footprint	65 kg CO2 eq.
Upgradeability	Yes
Pep Code	ENVPEP1803026EN
Pep Verification Date	2025-12-12
Psr Version	No PSR
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	96 mm
[Us] Rated Supply Voltage	24 V AC/DC
Package Weight(Lbs)	288.0 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-20-60 °C, -20-60 °C
Product Compatibility	logic controller M171, logic controller M172
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1803026EN
Environmental Disclosure	ENVPEP1803026EN
Ip Degree Of Protection	IP65 front panel:
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1803026EN
Pcr Version	PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-30-60 °C, -30-60 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	65.04567844176667
Directives	2014/30/EU - electromagnetic compatibility
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-12-12
Psr Version	No PSR
