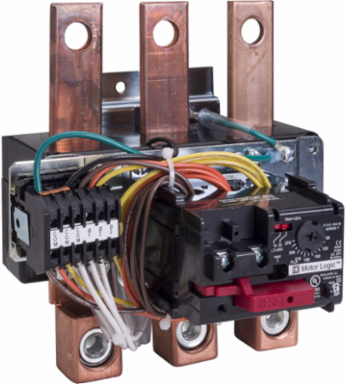

Square D 9065SF520 Motor Logic Solid State Overload Relay, NEMA Size 5, 90A-270A, 600V AC
- MPN: 9065SF520
- UPC: 785901166542
- PPN: SCH-9065SF520
CAD
$2484.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 5 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 90A to 270A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 8.25 inches tall, 7.75 inches wide and 7.38 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth187.5 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 1.129874902116062, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.713331110534009, 0.7 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 5 kg CO2 eq., 5.069037029711683
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1312002EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1925
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Mounting Support
- panel
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 28 kg CO2 eq.
- Pep Code
- ENVPEP1312002EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 209.6 mm
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 1.361 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.209034497425047
Carbon Footprint Of The Manufacturing Phase [A1 To A3]19 kg CO2 eq., 18.92770795765834
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Energy Efficiency OptimizedFalse
Phase3 phase
Range Of ProductMotor Logic
Software Versionv6.2.5-6
Thermal Overload Typesolid state
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %42
Width Nominal196.9 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 28.04898549744514
- Environmental Disclosure
- ENVPEP1312002EN
- Nema Size
- 5
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1312002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1312002EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
Range Of ProductMotor Logic
ETIM
- ETIM 8
- EC001080
ETIM 9EC001080
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
