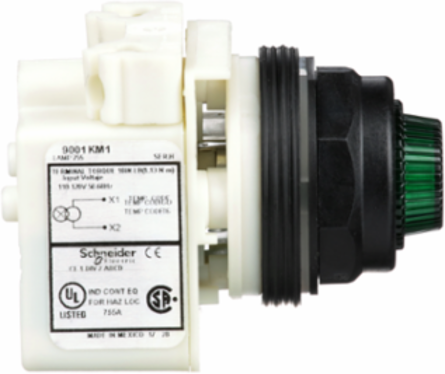

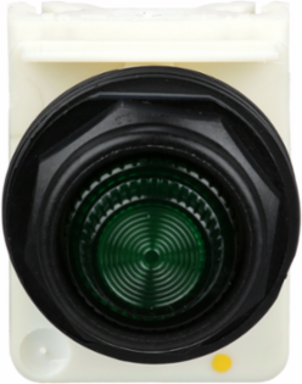

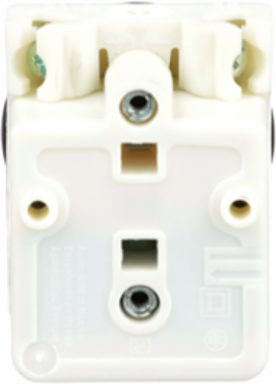

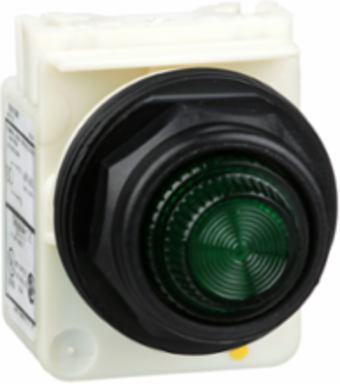

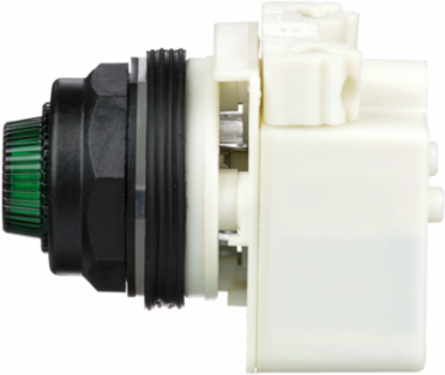

Schneider Electric 9001SKP1G31 Harmony 9001SK Green Pilot Light 30 mm IP66 110-120V AC
Schneider Electric 9001SKP1G31 Harmony 9001SK Green Pilot Light 30 mm IP66 110-120V AC
- MPN: 9001SKP1G31
- UPC: 785901959731
- PPN: SCH-9001SKP1G31
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$198.11/ EA
Description
This Harmony 9001SK, green pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710019EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710019EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- [Us] Rated Supply Voltage
- 110...120 V
- Light Source
- incandescent
- Lens Material
- polycarbonate
- Mounting Diameter
- 30 mm
- Operating Position
- any position
- Shape Of Signaling Unit Head
- round
- Cad Overall Width
- 54 mm
- Size
- 30 mm
- Supply Frequency
- 50...60 Hz
- Device Presentation
- complete product
[Us] Rated Supply Voltage110...120 V AC
Bezel Materialplastic
Light Sourceincandescent bulb
Light Block Supplyvia integral transformer
Operating Modenormal
Cap/Operator Or Lens Colourgreen
Cad Overall Depth42 mm
Cad Overall Height70 mm
Bulb BaseBA 9s
Lens Typefresnel
Specifications
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- pilot light
Light Block Supplyvia transformer 120 V AC 50/60 Hz || via integral transformer 110 V AC 50/60 Hz
Lens Typefresnel plastic
Environment
- Protective Treatment
- TC
Ip Degree Of ProtectionIP66
