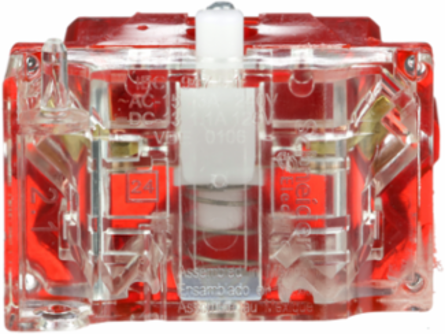

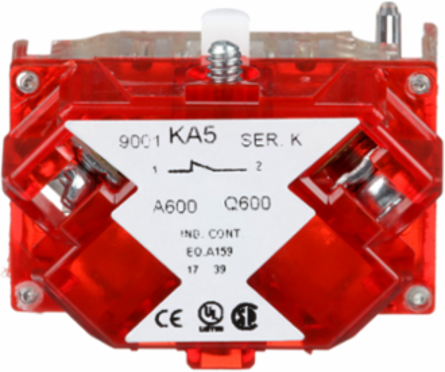

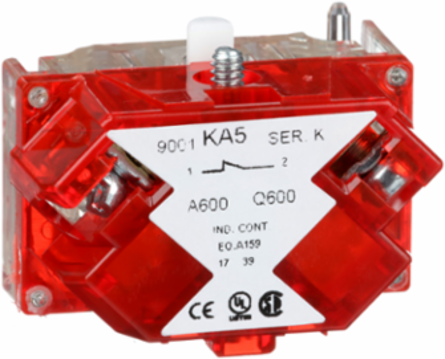

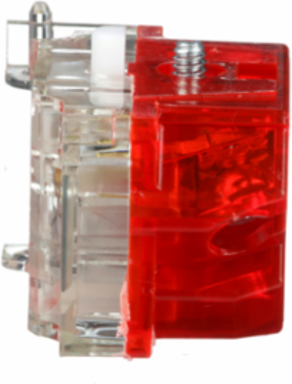

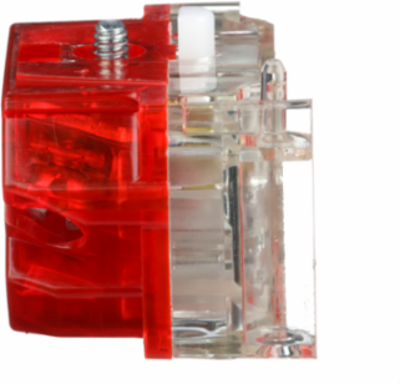

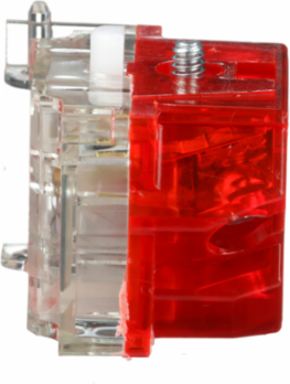

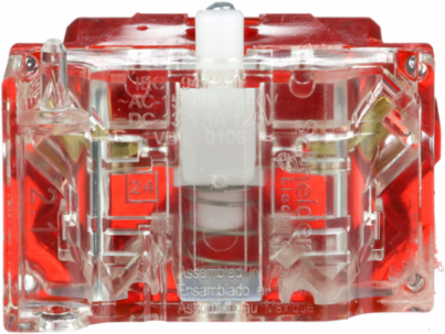

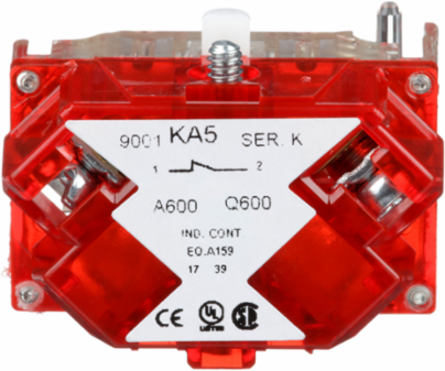

Schneider Electric 9001KA5 Harmony 9001K Contact Block, 0-600V, 1 NC, Screw Clamp Terminals, IP20

MPN: 9001KA5
UPC: 785901880103
PPN: SCH-9001KA5

$27.72

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features late-break contact operation. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Features

This standard contact block is fully compatible with the entire Harmony 9001K and 9001SK 30mm heavy-duty oily-tight operator line. The simple, stackable mounting design allows you to add or replace contact blocks in seconds using a single captive screw, making it the ideal solution for expanding control logic without needing to replace the entire pilot device or modify the enclosure cutout.
Engineered for high-performance industrial switching, this contact block is rated for 10-amp continuous current up to 600V. Whether you are controlling heavy-duty motor starters or low-voltage PLC inputs, the silver-alloy contacts ensure high conductivity and a long mechanical life cycle, even in high-vibration or high-cycle applications typical of automotive and CNC machining plants.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Rated Breaking Capacity	3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	Harmony 9001K, Harmony 9001SK
[Icm] Rated Short-circuit Making Capacity	12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-130.27 kA 250 V DC-13
Connections - Terminals	screw-clamp terminals, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]	0.0029657542578221023, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00016719501351968255, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	late-break
Contacts Type And Composition	1 NC
Electrical Shock Protection Class	class II conforming to IEC 61140
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Shape Of Screw Head	cross slotted
Software Version	v5.9.4
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP2312033EN
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
[Us] Rated Supply Voltage	0...600 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509035

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	NEMA, UL 508
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
Terminals Description Iso N°1	(3-4)NO_CL, (3-4)NO_CL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.06403155669487656
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.17140813990237735
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	9001K
Contacts Material	silver alloy contacts
Device Short Name	9001K
Positive Opening	with IEC 60947-5-2
Product Or Component Type	contact block
Returnability	Yes
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Contact blocks are an important electrical component used in a variety of industrial applications. It provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.135 W with 35% utilisation rate and the product has a life of 10 years and adhering to standards IEC 60947-1 & IEC 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US
[Ith] Conventional Free Air Thermal Current	10 A
[Uimp] Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1
Short-circuit Protection	10 A cartridge fuse IEC 60947-5-1
Package Weight(Lbs)	22.68 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.23857264586859572
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2312033EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312033EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
