Schneider Electric XB4RFB01 Harmony XB5R 22mm Wireless Metal Pushbutton, 24V DC, 1 Relay
- MPN: XB4RFB01
- PPN: SCH-XB4RFB01
CAD
$231.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

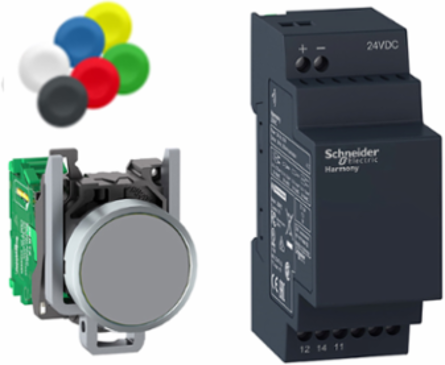

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB4R metal. This pack comprises one wireless and batteryless metallic pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. This technology also allows an operator to be mobile or have a control mounted on-board of a vehicle (trolley, truck, etc.). The pushbutton is always available and requires no maintenance (no battery needed).
Documentation & Downloads
Specifications
Key Specifications
- Antenna Type
- omnidirectional
- Level Or Class
- 5M00G7W
- Head Material
- metal
- Transmission Frequency
- 2405 MHz transmitter || 2405 MHz receiver
Range Of ProductHarmony XB4R
Product Or Component Typewireless and batteryless package
Device Short NameXB4R
Complementary
- [Us] Rated Supply Voltage
- 24 V
- Control Type
- wireless and batteryless push-button Ø 22 mm assembled on fixing collar
- Max Power Consumption In W
- 1 mW
- Type Of Receiver
- non-programmable receiver 1 relay)
- Customizable
- no
- Communication Port Protocol
- Zigbee IEEE 802.15.4
- Bandwidth
- 5-5 MHz
[Us] Rated Supply Voltage24 V DC
Modulation TechniqueO-QPSK
Number Of Channels1
Compatibility CodeXB4R
Kit Composition1 22 mm || 1 fixing collars || 1 push-button head 22 mm || 1 transmitter || 1 receiver || 1 set of caps
Antenna Gain0 dBi
Environment
- Product Certifications
- CCC || C-Tick || GOST || CSA || UL
- Marking
- CE
StandardsUL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1
Radio AgreementARIB T66 || RSS || ICASA || SRRC || FCC || ANATEL
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
