Schneider Electric

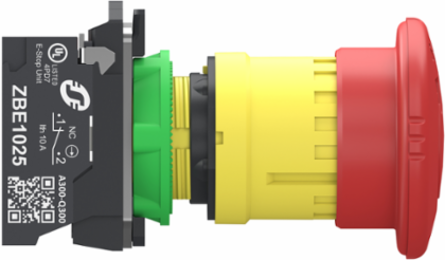

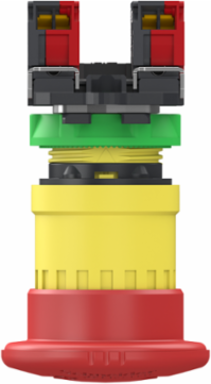

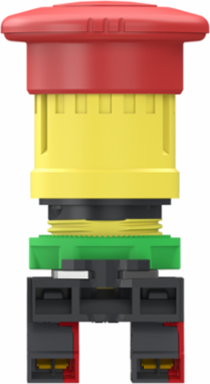

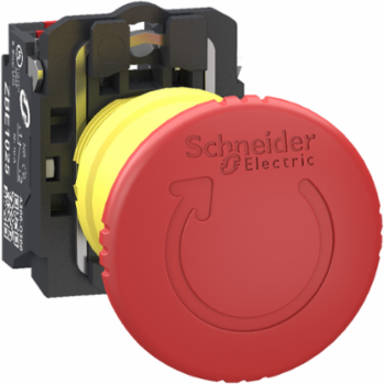

Schneider Electric XB5AS84445 Emergency stop switching off, Harmony XB5, grey plastic, red mushroom 40mm, 22mm, trigger turn to release, 2NC, push in

  • MPN: XB5AS84445
  • PPN: SCH-XB5AS84445

CAD

$102.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony XB5 emergency stop/shutdown 40mm mushroom head red push button operates with a turn to release mechanism. It is also called EMS (Emergency Machine Stop) and EMO (Emergency Off). It features 2 NC contacts with slow break operation. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with push-in terminal connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. This product is made from plastic, it weighs 64g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, United States

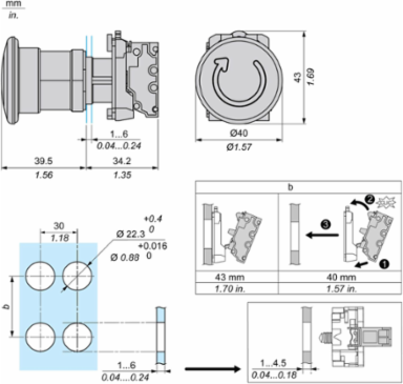

Depth73.2 mm

Physical Attributes

Cap Operator Or Lens Color
red

Complementary Attributes

Ie Rated Operational Current
6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Ui Rated Insulation Voltage300 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Customizable
no, 0
Product Or Component Type
emergency stop push-button, emergency switching off push-button

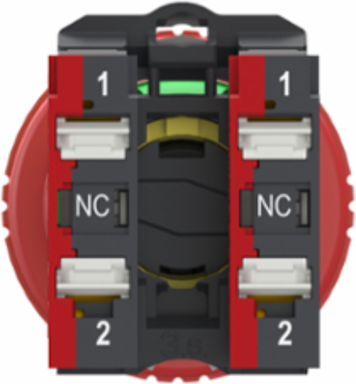

Terminals Description Iso N 1
(11-12)NC, (11-12)NC
Connections Terminals

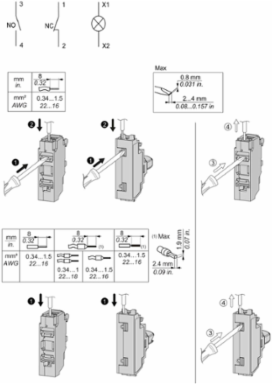

push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Carbon Footprint Of The Distribution Phase A4
0.008369059233449477, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
0 kg CO2 eq., 0.02232397846056382
Carbon Footprint Of The Use Phase B2 B3 B4 B6
0.1 kg CO2 eq., 0.060358
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
Yes
Product Repair Index Dam Doc
XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1810
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Average Percentage Of Recycled Metal Content
22 %
Bezel Material
dark grey plastic
Contact Operation
slow-break
Contacts Usage
standard contacts
Fixing Collar Material
plastic
Mechanical Durability
10000000 cycles
Operating Force
4.5 N
Overvoltage Category
class II conforming to IEC 60536
Product Availability
Stock - Normally stocked in distribution facility
Protective Treatment
TH
Reset
turn to release
Returnability
Yes
Shape Of Signaling Unit Head
round
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
0.7 kg CO2 eq.
Cap Operator Or Lens Color
red
Ith Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Pep Code
ENVPEP2308012_V1
Pep Verification Date
2023-10-30
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; APAC
Height Nominal
43 mm
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
1.319
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
0.2466
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
0.2466
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Travel1.217 mm NC changing electrical state), 4.3 mm total travel)
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Ie Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.11300855242318657, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.5 kg CO2 eq., 0.5162470700031675
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308012EN
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content13 %
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Device Short NameXB5
Head Typestandard
Mounting Diameter22.5 mm

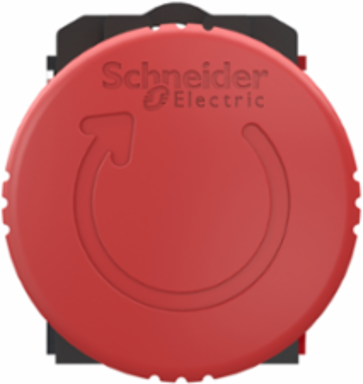

Operator Profilered mushroom Ø 40 mm, unmarked
Positive Openingwith IEC 60947-5-1 appendix K
Product Repair IndexA
Range Of ProductHarmony XB5
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingNo
Type Of Operatortrigger action and mechanical latching
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
Recyclability Potential, In %21
Width Nominal40 mm
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.5656
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.319

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Take Back
No
Recycled Metal Content At Cr Level
22 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
0.7203066601203673
Environmental Disclosure
ENVPEP2308012_V1
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2308012_V1
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308012EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
emergency stop push-button, emergency switching off push-button
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC002034
ETIM 9EC002034

Overview Attributes

Device Presentation
complete product
