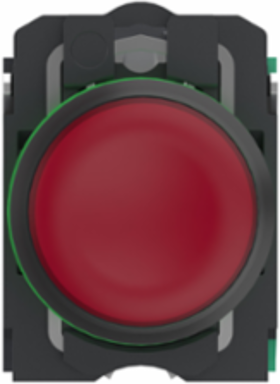

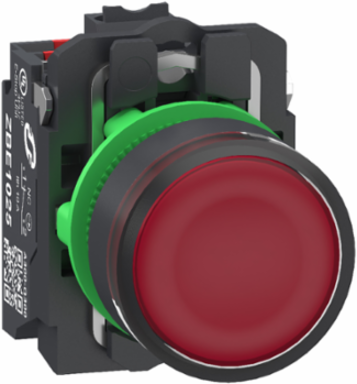

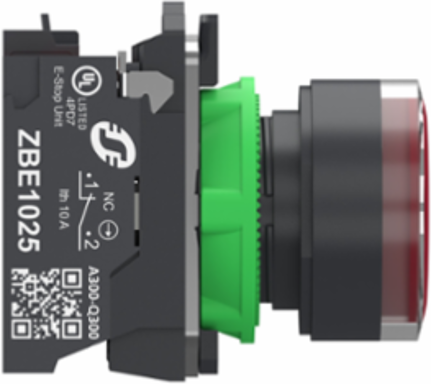

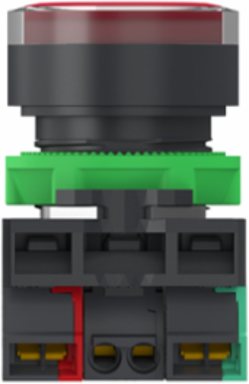

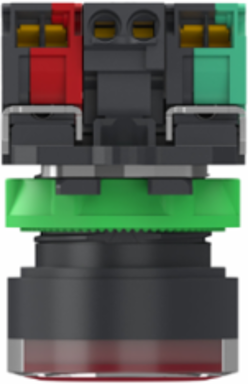

Schneider Electric XB5AW34B55 Illuminated push button, Harmony XB5, plastic, red flush, 22mm, universal LED, plain lens, 1 NO+1 NC, 24V AC DC, push in

  • MPN: XB5AW34B55
  • PPN: SCH-XB5AW34B55

CAD

$71.75

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Illuminated push button, Harmony XB5, plastic, red flush, 22mm, universal LED, plain lens, 1 NO+1 NC, 24V AC DC, push in

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, United States

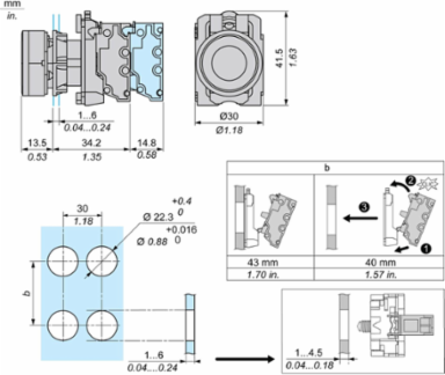

Depth48.2 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Customizable
no, 1
Operating Travel
1.217 mm NC changing electrical state), 2.05 mm NO changing electrical state), 4.3 mm total travel)
Shock Resistance
25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
[Ie] Rated Operational Current
6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Connections - Terminals
push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]
0.0167186809, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0 kg CO2 eq., 0.0160766488
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
0.4 kg CO2 eq., 0.4183380282
Local Publishable Date
2026-01-12
Return Indicator
Y
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Bulb Base
integral LED
Contact Operation
slow-break
Contacts Type And Composition
1 NO + 1 NC
Current Consumption
15 mA
Electromagnetic Emission
class B IEC 55011
Gcr Bridge
XB5AWCUST05
Light Source
universal LED
Mounting Diameter
22.5 mm
Operator Profile
red flush, unmarked
Positive Opening
with IEC 60947-5-1 appendix K
Product Or Component Type
illuminated push-button
Range Of Product
Harmony XB5
Resistance To Fast Transients
2 kV IEC 61000-4-4
Returnability
Yes
Service Life
100000 h at rated voltage and 25 °C
Signalling Type
steady
Sustainable Packaging
No
Type Of Operator
spring return
Pep Code
ENVPEP2404014EN
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RS
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RS
Width Nominal
30 mm
[Ui] Rated Insulation Voltage
300 V 3)IEC 60947-1
Cap/Operator Or Lens Colour
red
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Force2.25 N NC changing electrical state, 2.45 N NO changing electrical state
Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Supply Voltage Limits20.4-26.4 V DC, 20.4-26.4 V AC
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz, 24 V

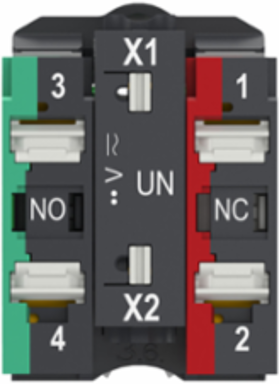

Terminals Description Iso N°1(21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1340720143, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.4042941176
Local Data StatusPublishable
Pre Comm Date2024-05-23
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialdark grey plastic
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Device Short NameXB5
Fixing Collar Materialplastic
Head Typestandard
Mechanical Durability10000000 cycles
Operator Additional Informationwith plain lens
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 &amp; UL 508.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RS
Height Nominal42 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)40.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Take Back
No
China Rohs Regulation
X
Carbon Footprint
0.9894994898
Environmental Disclosure
ENVPEP2404014EN
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2404014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
illuminated push-button
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC001028
ETIM 9EC001028

Surge Protection And Filtering Attributes

Surge Withstand
1 kV IEC 61000-4-5

Overview Attributes

Device Presentation
complete product
