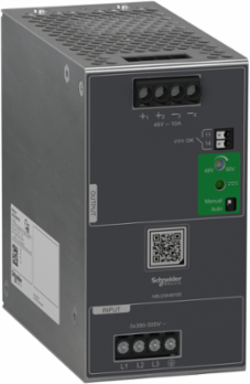

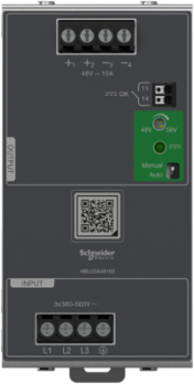

Schneider Electric ABLU3A48100 Regulated Power Supply, 380...500V AC, 48V, 10A, 3 phases, Universal
Schneider Electric ABLU3A48100 Regulated Power Supply, 380...500V AC, 48V, 10A, 3 phases, Universal
- MPN: ABLU3A48100
- PPN: SCH-ABLU3A48100
- UNSPSC: 39121004
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$691.37/ EA
Description
This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 380V to 500V AC, a rated output current of 10A at 48V DC and a rated power output of 480W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It operates from minus 25 to plus 55degrees celcius and plus 55 to 70degrees celcius with a current derating of 3.3%, at an altitude of less than 2000meters. It measures 124mm high, 65mm wide, and 127.2mm deep. It weighs 1.15kg. It is a power supply for industrial use. It meets CE, CB Scheme, cULus Listed, UL HazLoc Class1Div2, cURus Recognized, RCM, EAC, UKCA, KC. To IEC/EN-UL/CSA 62368-1, IEC/EN-UL/CSA 61010-1/2 standards. GV2ME07 or GV2RT06 circuit breakers are recommanded for its protection. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
Features
- One of the most compact on the market
- Up to +70°C ambiant temperature
- Manual or Automatic reset in case of output overload or short circuit
- Power reserve allowing to deliver a current of 150% its nominal rating for a short time
- Conformal coating in order to resist to common dust and humidity
- Direct access to the documentation and serial number thanks to QR code
Specifications
Conformance Attributes
- Product Certifications
- CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC, UKCA, cURus
StandardsIEC 62368-1, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, CSA C22.2 No. 107.1
Complementary Attributes
- Maximum Leakage Current
- 2 mA 500 V AC
Rated Power In W480 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.73 A 500 V AC, < 0.73 A 500 V AC, < 0.73 A 500 V AC, < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.73 A 500 V AC, < 0.73 A 500 V AC, < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.73 A 500 V AC, < 0.73 A 500 V AC, < 0.73 A 500 V AC, < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.85 A 380 V AC, < 0.73 A 500 V AC, < 0.73 A 500 V AC
- Earthing System
- TN, TT, IT
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
- Holding Time
- > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC
- Line And Load Regulation
- < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C

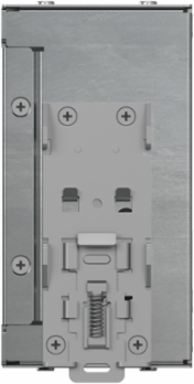

- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
- Power Factor
- 0.90 at 380 V AC, 0.88 at 500 V AC
- Response Time
- < 1 s, < 1 s
- Vibration Resistance
- 3.5 mm (f= 3-11.9 Hz) conforming to IEC 60068-2-6, 20 m/s² (f= 11.9-150 Hz) conforming to IEC 60068-2-6

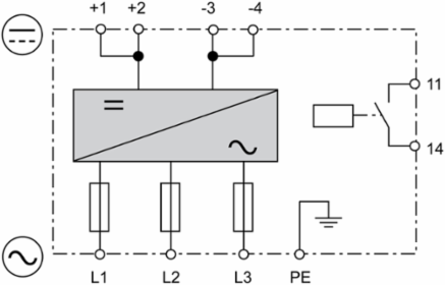

- Connections Terminals
- screw connection 4...6 mm², AWG 12...AWG 10) without wire end ferrule output, screw connection 4 mm², AWG 12) with wire end ferrule output, screw connection 0.75…6 mm², AWG 18...AWG 10) without wire end ferrule input, screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input, cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule diagnostic relay, cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule diagnostic relay, cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule shut down input
- Connections Terminals3
- screw connection 4...6 mm², AWG 12...AWG 10) without wire end ferrule output, screw connection 4 mm², AWG 12) with wire end ferrule output, screw connection 0.75…6 mm², AWG 18...AWG 10) without wire end ferrule input, screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input, cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule diagnostic relay, cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule diagnostic relay, cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule shut down input
- Local Publishable Date
- 2026-01-12
- Serviceability
- No
- Field Service Division
- IDIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2212024EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Efficiency At Full Load
- 320...575 V AC 3 phase
- Enclosure Material
- metal
- Network Frequency Limits
- 50-60 Hz
- Permissible Temporary Current Boost
- 1.5 x In for 5 seconds)
- Power Supply Type
- regulated switch mode
- Product Or Component Type
- power supply
- Relay Type
- electromechanical relay 1000.0 mA 30 V
- Service Life
- 10 year(s) 40 °C 80 % load
- Status Led
- 1 LED (green and red) product status
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- N
- Pep Code
- ENVPEP2212024EN
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Dielectric Strength4000 V AC with input to output, 2000 V AC with input to ground, 1500 V AC with output to ground, 4000 V AC with input to diagnostic relay, 500 V AC with output to diagnostic relay, 1500 V AC with diagnostic relay to ground, with shutdown input not isolated from output
Efficiency92 % 380 V AC, 92 % 500 V AC
Electromagnetic Emissionconducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
Inrush Current35 A 380 V, 35 A 500 V
MarkingCE, UKCA
Overvoltage CategoryIII, II
Residual Ripple< 150 mV, < 150 mV
SupplySELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Meantime Between Failure Mtbf2890200 h at 25 °C, full load conforming to SR 332, 346200 h at 55 °C, 80 % load conforming to SR 332
Meantime Between Failure Mtbf3890200 h at 25 °C, full load conforming to SR 332, 346200 h at 55 °C, 80 % load conforming to SR 332
Local Data StatusPublishable
Device TypePLC System - PLC Component
TraceabilityYes
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Market SegmentationIndustrial
Electrical Shock Protection Classclass I
Load Capacitance200000 µF
Package Weight Lbs1.512 kg
Power Dissipation In W33 W
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon Power Supply
ReturnabilityYes
Shock Resistance150 m/s² 11 ms
Sustainable PackagingNo
Medium DescRegulated Power Supply, 380...500V AC, 48V, 10A, 3 phases, Universal
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Circularity Profile
- ENVEOLI2212024EN
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212024EN
Ambient Air Temperature For Operation-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), 55-70 °C with current derating of 3.3 % per °C mounting position A < 6561.68 ft (2000 m)
Operating Altitude< 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, overvoltage category II
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2212024EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power supply
Range Of ProductModicon Power Supply
Output Attributes
- Output Protection Type
- against overload and short-circuits, protection technology: manual or automatic reset by switch, against over temperature, protection technology: automatic reset, against overvoltage, protection technology: manual reset
- Output Voltage
- 48 V DC
- Power Supply Output Current
- 10 A
Output Couplingparallel
Output Voltage Limits48…56 V
Input Attributes
- Efficiency
- 92 % 380 V AC, 92 % 500 V AC
- Efficiency At Full Load
- 320...575 V AC 3 phase
Input Protection Typeintegrated fuse (not interchangeable) 3.15 A, external protection (recommended)
Input Voltage380...500 V AC three phase
Specifications

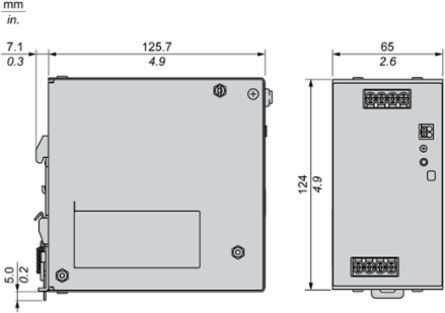

- Depth
- 127.2 mm
