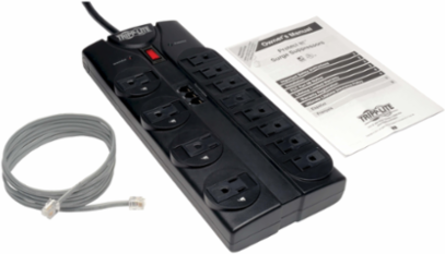

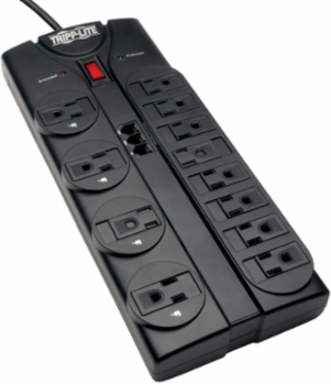

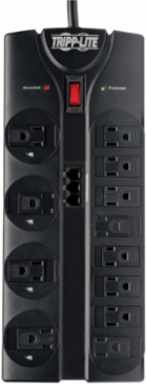

Tripp Lite TLP1208TEL 12-Outlet Surge Protector with 8-ft Cord, 2160 Joules, Tel/Modem Protection
Tripp Lite TLP1208TEL 12-Outlet Surge Protector with 8-ft Cord, 2160 Joules, Tel/Modem Protection
- MPN: TLP1208TEL
- UPC: 037332152503
- PPN: TRP-TLP1208TEL
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$84.48/ EA
Features
- 12 outlets / 8-ft. cord
- 2160 joule rating

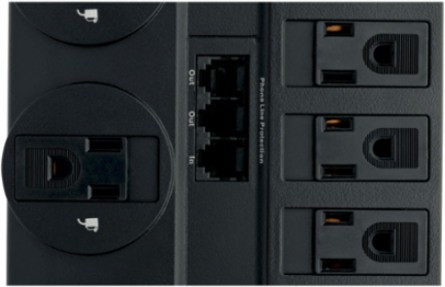

- 1 in/2 out tel/modem surge protection
- 4 transformer spaces
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $150,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 2160
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- UL1449 Let Through Rating
- 330V L-G, 400V L-N, 400V N-G
- Automatic Shut-Off
- Yes
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 40 dB
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL1449 3RD EDITION
- UL497A (Communications)
- UL497A
- Canada
- cUL
- Approvals
- Exceeds IEEE 587 category A&B specifications
UL1363 (Power Tap)UL1363
FCC Part 68 (Communications)FCC Part 68
Industry Canada (Communications)Industry Canada
Dataline Surge Suppression
- Telephone/DSL Protection
- Yes
- Cable (Coax) Protection
- No
Telephone/DSL Protection Details1 line
Network (Ethernet) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black

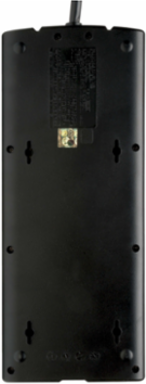

- Integrated Keyhole Mounting Slots
- Yes
- Material of Construction
- Plastic
- Receptacle Color
- Black
- Shipping Weight (lbs.)
- 2.50
- Unit Weight (lbs.)
- 2.09
ColorBlack
Housing ColorSilver
Keyhole Slot Mounting Measurement (Center to Center)Distance between horizontal tabs = 152mm; Distance between vertical tabs = 73.5mm
Outlets Measurement (Center to Center)Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm
Shipping Dimensions (hwd / in.)13.60 x 2.40 x 8.80
Unit Dimensions (hwd / in.)1.54 x 2.72 x 10.30
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details

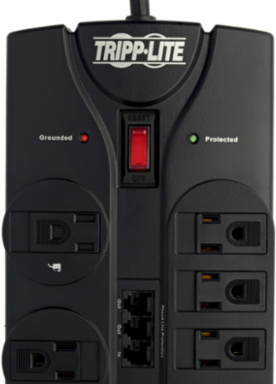

- Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
SwitchesTwo-position on/off power switch
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 144000
- Input Cord Length (ft.)
- 8
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120

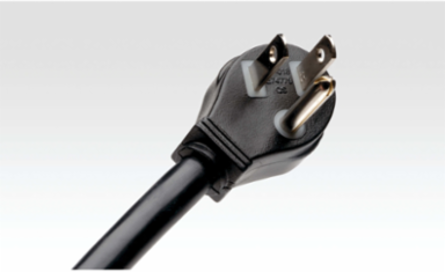

Input Plug TypeNEMA 5-15P
Right-Angle PlugYes
Output
- Output Volt Amp Capacity (VA)
- 15
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (12) 5-15R
- Transformer Accommodation
- (8) Yes
- Right-Angle Outlets
- No
Output Watt Capacity (Watts)1875
Output (Watts)1800
Overload Protection15A resettable circuit breaker

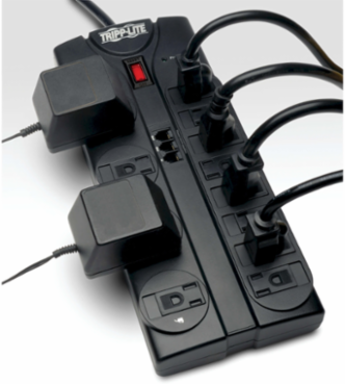

Outlet OrientationTwo rows of outlets, including 4 widely spaced for transformers
Overview
- UPC Code
- 037332152503
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$150,000 Ultimate Lifetime Insurance
