Tripp Lite TLP825 8-Outlet Surge Protector, 25 ft Cord, 1440 Joules, Right-Angle Plug, Light Gray
- MPN: TLP825
- UPC: 037332138248
- PPN: TRP-TLP825
CAD
$115.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

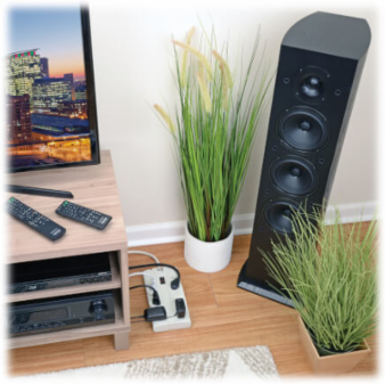

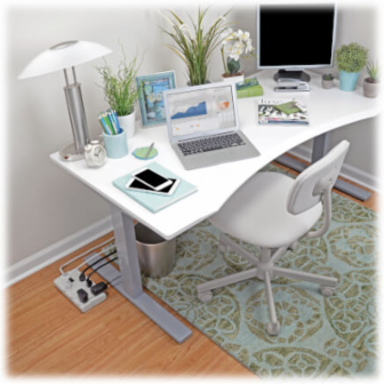

Safeguard your computer, printer, scanner, router, modem and other small home electronics against dangerous surges, spikes and line noise. Recommended for any desktop, network or home application requiring AC line protection.
Features

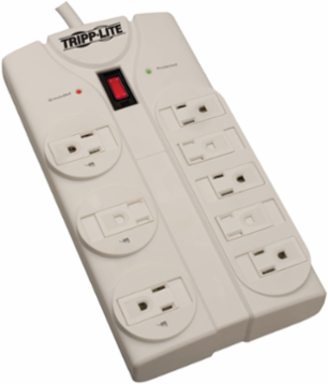

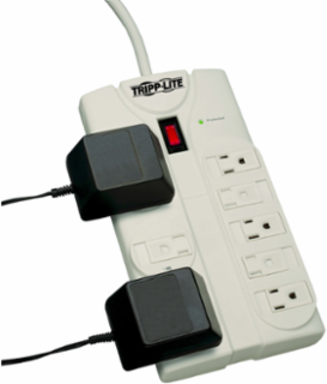

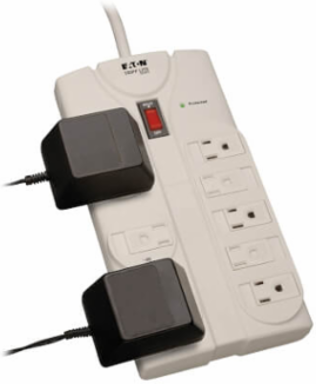

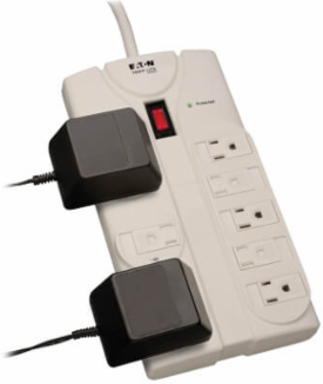

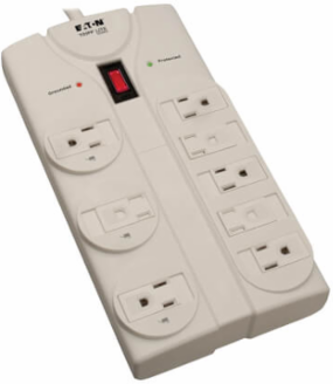

- 8 NEMA 5-15R outlets, including 3 for bulky transformers
- 1440-joule surge protection rating
- Filters out threatening EMI/RFI line noise
- 15A resettable circuit breaker prevents dangerous overloads

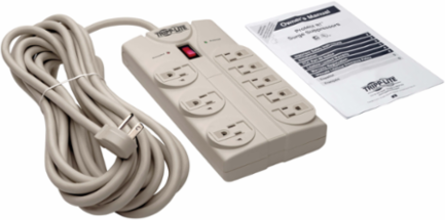

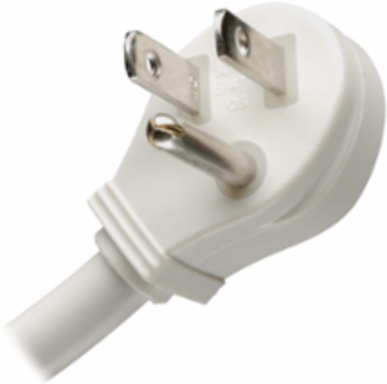

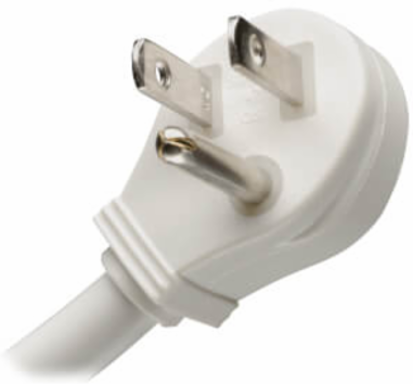

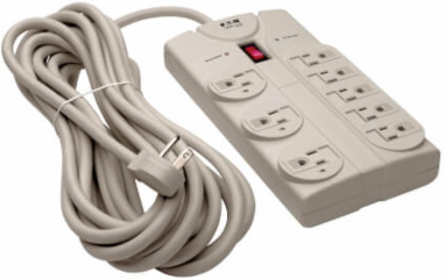

- 25 ft. AC power cord with right-angle NEMA 5-15P plug
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $75,000 Ultimate Lifetime Insurance
- 1440-Joule Surge Protection for Home or Office Electronics
- 8 Outlets Accept Wide Range of Electronic Devices
- Premium Safety Features
- Fits Effortlessly Into Your Workstation
- Backed by Tripp Lite’s Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 1440
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- UL1449 Let Through Rating
- 330/400/400
- Automatic Shut-Off
- Yes
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 40 dB
Certifications
- Additional International Approvals
- RoHS
- UL1363 (Power Tap)
- UL1363
- Approvals
- Exceeds IEEE 587 category A&B specifications
UL1449 3rd Edition (AC Suppression)UL1449 3RD EDITION
CanadacUL
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Light Gray

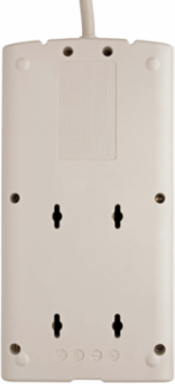

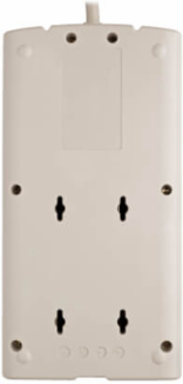

- Integrated Keyhole Mounting Slots
- Yes
- Material of Construction
- Plastic
- Receptacle Color
- Light gray
- Shipping Weight (lbs.)
- 3.70
- Unit Weight (lbs.)
- 3.46
ColorLight Gray
Housing ColorLight Gray
Keyhole Slot Mounting Measurement (Center to Center)Distance between horizontal slots = 75mm; Distance between vertical slots = 41.6mm
Outlets Measurement (Center to Center)Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm
Shipping Dimensions (hwd / in.)12.40 x 4.10 x 5.20
Unit Dimensions (hwd / in.)4.86 x 9.55 x 1.51
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details

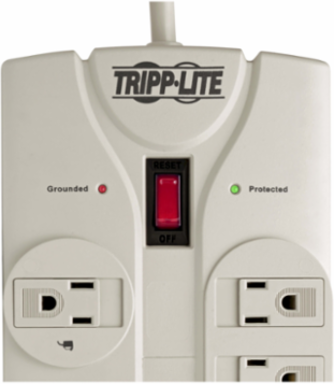

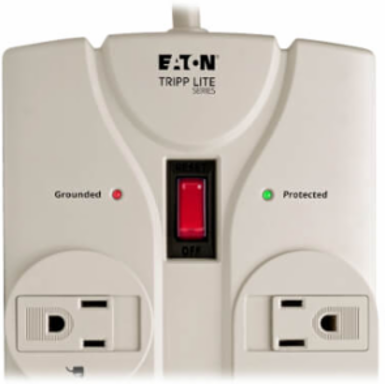

- Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
SwitchesCombination AC circuit breaker and 2 position red illuminated on/off power switch
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 84000
- Input Cord Length (ft.)
- 25
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120
Input Plug TypeNEMA 5-15P
Right-Angle PlugYes
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (8) 5-15R
- Transformer Accommodation
- (6) Yes
- Right-Angle Outlets
- No
Output (Watts)1800
Circuit Breaker (amps)15

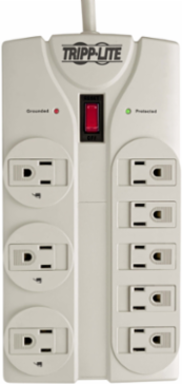

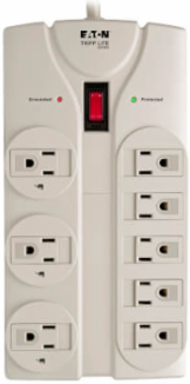

Outlet OrientationSingle row of 5, plus a second row of 3 for transformer accommodation
Overview
- UPC Code
- 037332138248
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$75,000 Ultimate Lifetime Insurance
