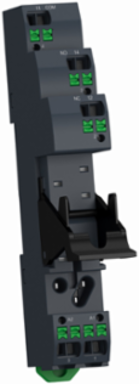

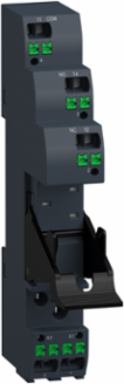

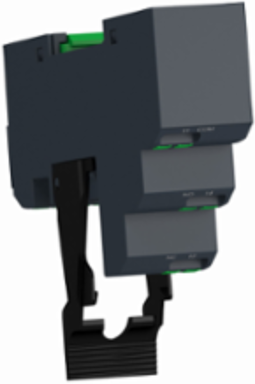

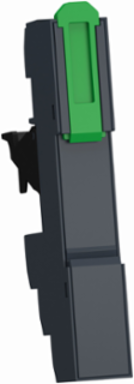

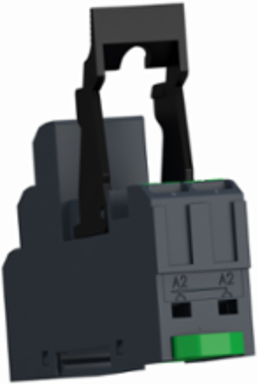

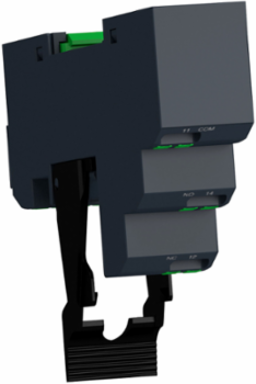

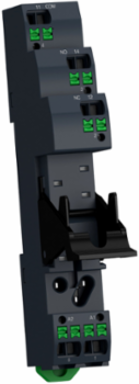

Schneider Electric RSZE05P Harmony Electromechanical Relay Socket, 12A, IP20, 98 mm Length

MPN: RSZE05P
PPN: SCH-RSZE05P

$16.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Schneider Electric's Harmony Electromechanical Relay Socket is engineered for reliable connectivity and performance in various industrial applications. With a current rating of 12A and achieving an IP20 protection rating, this socket is designed to accommodate the demands of robust environments while maintaining user safety. Its compact length of 98 mm ensures easy integration into your setups, allowing for efficient space management without sacrificing functionality. This electromechanical relay socket stands out for its durability and versatility, making it an essential component for enhancing electrical control systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France

Complementary Attributes

Line Rated Current	12 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA, UL, EAC
Carbon Footprint Of The Distribution Phase [A4]	0.00622117731684033, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00018338415806898203, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-02-24
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Terminal Arrangement	separate
Device Short Name	RSZ
Marking	CE
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Electromechanical Relays
Sale Per Indivisible Quantity	10
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Pep Code	ENVPEP2502016EN
Pep Verification Date	2025-01-02
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.

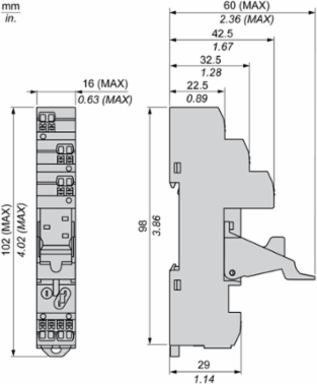

Height Nominal	60 mm
Width Nominal	16 mm
[Ue] Rated Operational Voltage	250 V IEC300 V UL
[Uimp] Rated Impulse Withstand Voltage	4 kV
Package Weight(Lbs)	32.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Connections - Terminals	push-in terminals, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² 20 AWG...16 AWG) flexible with cable endspring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.07409527066307833
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.20963403785125556
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1951
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	RSZ
Contacts Type And Composition	1 C/O
Fixing Mode	clip-on (35 mm symmetrical DIN rail)
Overvoltage Category	III
Product Or Component Type	socket
Returnability	Yes
Shape Of Pin	flat
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	RGZ socket that can be mounted with RXG relays to facilitate electrical connection of relay and also to provide structural support to relay via attachment to DIN rail during 20 years with the following dimensions 77.5 mm x 73 mm x 15.8 mm and product is adhering to international standards like CSA C22.2 No 14, IEC 61984 ,UL 508.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	98
Length Total	98 mm
[Ith] Conventional Free Air Thermal Current	12 A
[Ui] Rated Insulation Voltage	250 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

Ambient Air Temperature For Operation	-40-85 °C, -40-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2901338699892432
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	plug-in relay RSB with 1 C/O contact at 12 A
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-01-02
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2502016EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2502016EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
