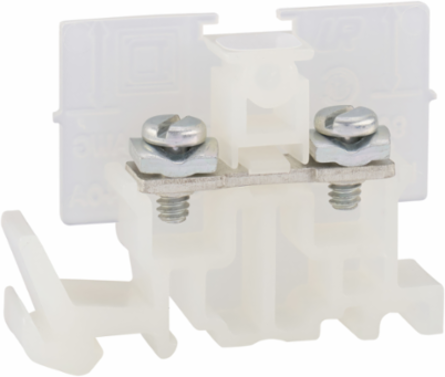

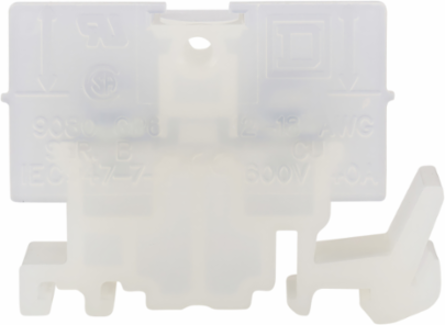

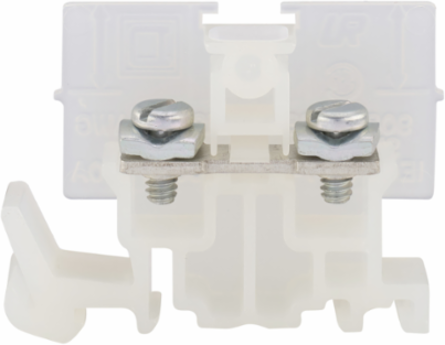

Square D 9080GP6 Linergy Terminal Block, 40A, 600V, Clamp Terminal, Natural Color, 1.8 Inch Width
- MPN: 9080GP6
- UPC: 785901155379
- PPN: SCH-9080GP6
CAD
$5.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has pressure wire connectors for use with solid or stranded copper wires from 18 through 12 AWG. Each pressure wire terminal is approved for use with various wire combinations. Each lug accepts 1 or 2 12 AWG, 1 or 2 14 AWG, 1 or 2 16 AWG or 1 to 2 18 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 40 ampere up to 600 VAC or VDC.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth0.37 in
Physical Attributes
- Color
- natural
Complementary Attributes
- Line Rated Current
- 40-40 A UL, 40-40 A CSA
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Electrical Connection
- pressure wire clamp
- Localisation On Device
- standard
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 50
- Returnability
- Yes
- Height Nominal
- 1.48 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCE, UL recognized E60616 CCN XCFR2, CSA file 62144 class 6228 01
Local Publishable Date2026-06-28
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1918
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge18 AWG...12 AWG copper
Energy Efficiency OptimizedFalse
Number Of Terminal Blocks32 per foot
Product Or Component Typeterminal block
Range Of Product9080G
Sustainable PackagingNo
Width Nominal1.8 in
Connections - Terminalsclamp terminal zinc plated steel 18-20 lbf.in : 18 AWG...10 AWG copper)
Package Weight(Lbs)9.1 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- GP6B
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
