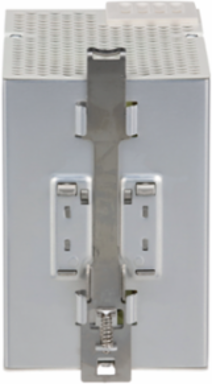

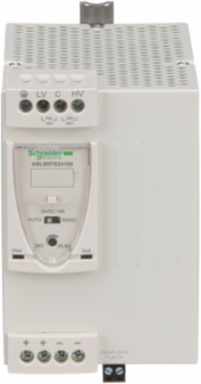

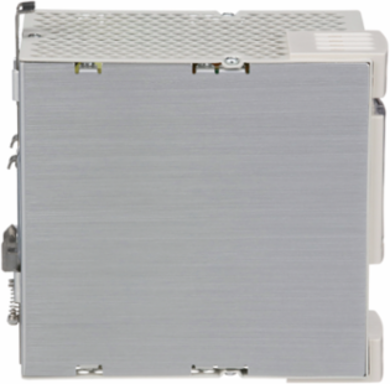

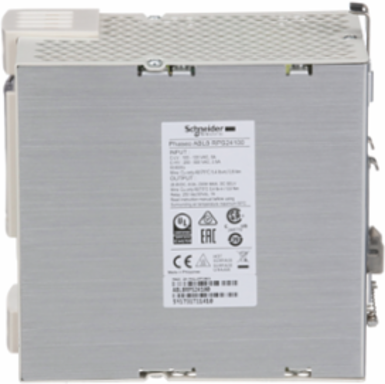

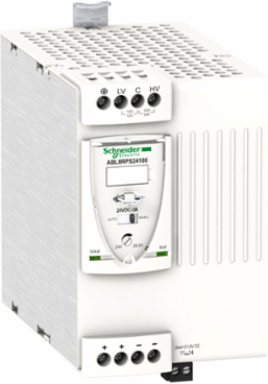

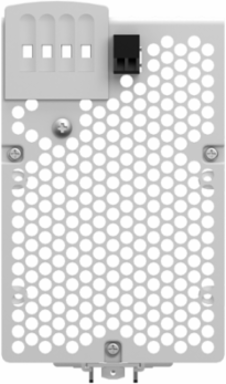

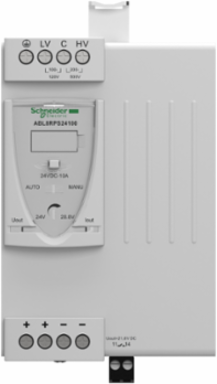

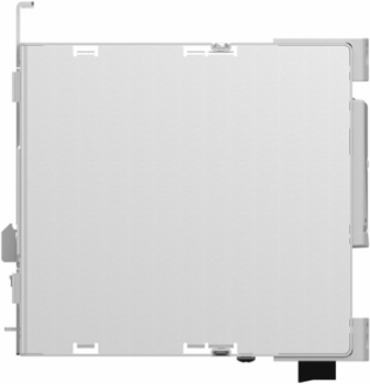

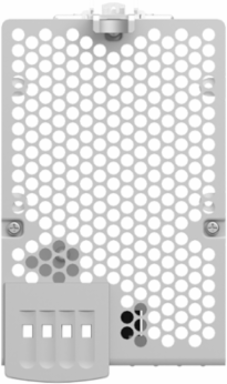

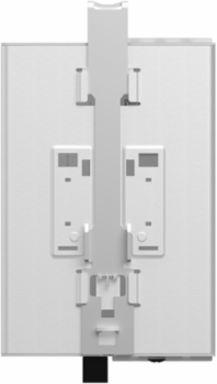

Schneider Electric ABL8RPS24100 Regulated Switch Mode Power Supply, 24V DC, 10A, 240W, DIN Rail Mountable

MPN: ABL8RPS24100
PPN: SCH-ABL8RPS24100
UNSPSC: 39121004

$458.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 85mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD08, GB2CD12, GV2RT07 and GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Features

Universal 100-240Vac input voltage to match any application
Avoid disturbances, restart or shutdowns on your automation system, even in case of micro-breaks and voltage sags
Automatic reset allows short-term faults to be cleared and ease systems to restart
Power reserve allowing to deliver a current of 150% its nominal rating for a short time
Finely adjust the output voltage to take into account the voltage at the end of your auxiliary control circuit
Instant fault diagnosis thanks to front side LED indicators

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Canada, China, Costa Rica, France, Philippines, Singapore, United States
Depth	145 mm

Weight	1645 g

Complementary Attributes

Rated Power In W	240 W

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Efficiency At Full Load	170...550 V AC, 85...132 V AC
Mounting Support	35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail
Connections Terminals	removable screw terminal block 2 x 2.5 mm², diagnostic relayscrew type terminals 3 x 0.5...3 x 4 mm², 22 AWG...12 AWG) input connectionscrew type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) input ground connectionscrew type terminals 4 x 0.5...4 x 4 mm², 22 AWG...12 AWG) output connection, screw type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) output ground connection
Carbon Footprint Of The Distribution Phase A4	0.8649782455656639, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.5 kg CO2 eq., 0.4884211864177958
Carbon Footprint Of The Use Phase B2 B3 B4 B6	418 kg CO2 eq., 418.41595517874333
Local Publishable Date	2026-03-25
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI120913EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1905
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Compatibility Code	ABL8R
Efficiency	87 %
Marking	CE
Permissible Temporary Current Boost	1.5 x In for 4 s)
Power Factor	0.68 at 240 V AC0.69 at 120 V AC
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	power factor correction filter IEC 61000-3-2
Returnability	Yes
Status Led	1 LED (green and red) output voltage1 LED (green, red and orange) output current
Total Lifecycle Carbon Footprint	467 kg CO2 eq.
Database Version	2024-01
Height Nominal	125 mm
Nbr. Of Units In Pkg.	1
Anti Harmonic Filter	low frequency harmonic currents
Packaging Weight In G	164.5
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Environmental Characteristic	safety conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-1, EMC conforming to IEC 61000-6-3, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-4, EMC conforming to EN/IEC 61204-3safety conforming to IEC 60950-1
Supply	SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Certificate Agency	cCSAus, EAC, KC, RCM, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	3.0685703053440747, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	44 kg CO2 eq., 44.38414050662544
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Dielectric Strength	3500 V with between input and ground4000 V with between input and output500 V with between output and ground
Inrush Current	30 A
Operating Position	vertical
Power Dissipation In W	31 W
Power Supply Type	regulated switch mode
Product Or Component Type	power supply
Range Of Product	Modicon Power Supply
Software Version	v6.2.5-6
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	86 mm
Customs Code	8504409530
Warranty In Months	18
Functional Unit Description	To protect and ensure service continuity of an electrical system in industrial atmosphere 34% of the time for 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	40

Environment Attributes Main

Ambient Air Temperature For Operation	-25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI120913EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	6561.68 ft (2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP061201EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	467.2220654226963
Environmental Disclosure	ENVPEP061201EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-10-31
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type	power supply
Range Of Product	Modicon Power Supply

Provided Equipment	power factor correction filter IEC 61000-3-2

ETIM

ETIM 8	EC002540
ETIM 10	EC002540

ETIM 9	EC002540

Output Attributes

Output Coupling	parallel, series
Output Voltage	24 V DC
Power Supply Output Current	10 A

Output Protection Type	against overload, protection technology: manual or automatic resetagainst overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic resetagainst undervoltage, protection technology: tripping if U < 21.6 Vthermal, protection technology: automatic reset
Output Voltage Limits	24...28.8 V adjustable
