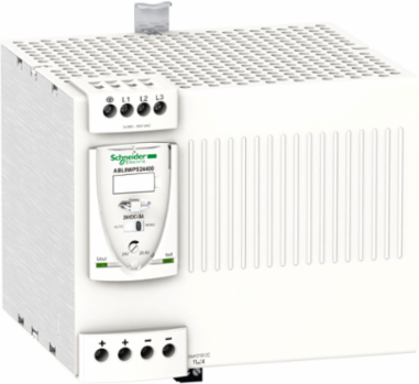

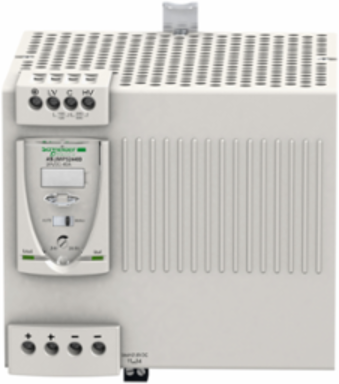

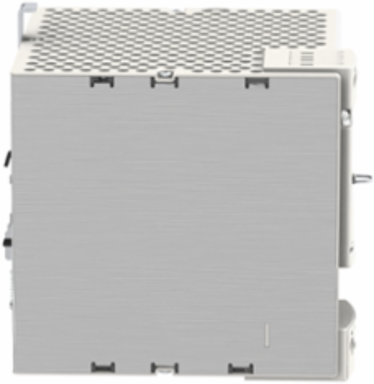

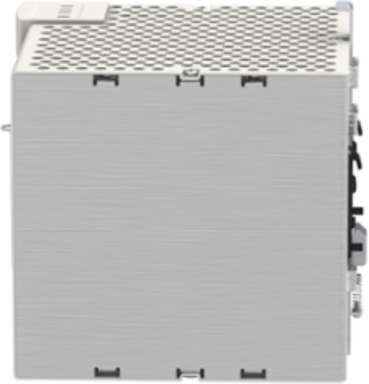

Schneider Electric ABL8WPS24400 Regulated Switch Mode Power Supply, 24V DC 40A, 380-500V AC, 960W
Schneider Electric ABL8WPS24400 Regulated Switch Mode Power Supply, 24V DC 40A, 380-500V AC, 960W
- MPN: ABL8WPS24400
- PPN: SCH-ABL8WPS24400
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$960.23/ EA
Description
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 380V to 500V AC, a rated output current of 40A at 24V DC and a rated power output of 960W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 165mm-wide. It weighs 2,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GV2ME07 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Specifications
Environment
- Standards
- CSA C22.2 No 60950-1 || UL 508 || EN/IEC 62368-1
- Product Certifications
- cCSAus || EAC || UL || RCM
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation50-60 °C with derating factor mounting position A < 2000 m || -25-50 °C without derating mounting position A < 2000 m
Environmental CharacteristicEMC IEC 61000-6-1 || EMC IEC 61000-6-3 || EMC EN 55024 || EMC IEC 61000-6-4 || EMC EN/IEC 61204-3 || safety EN 61204-4 || safety IEC 60950-1
Operating Altitude2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP061202EN
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI0612002EN
Complementary
- Output Coupling
- parallel || series
- Provided Equipment
- power factor correction filter IEC 61000-3-2
- Input Voltage Limits
- 320...550 V AC
- Dielectric Strength
- 3500 V between input and ground || 4000 V between input and output || 500 V between output and ground
- Supply
- SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
- Output Protection Type
- against overload manual or automatic reset || against overvoltage 30...32 V, manual reset || against short-circuits manual or automatic reset || against undervoltage tripping if U < 21.6 V || thermal automatic reset
- Output Voltage Limits
- 24...28.8 V adjustable
- Operating Position
- vertical
- Inrush Current
- 25 A
- Depth
- 160 mm
Height143 mm
Status Led1 LED (green and red) output voltage || 1 LED (green, red and orange) output current
Connections - Terminalsremovable screw terminal block 2 x 2.5 mm², diagnostic relay || screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection || screw type terminals 4 x 0.5...4 x 10 mm², AWG 22...AWG 8) output connection
MarkingCE
Net Weight2.7 kg
Power Dissipation In W76.8 W

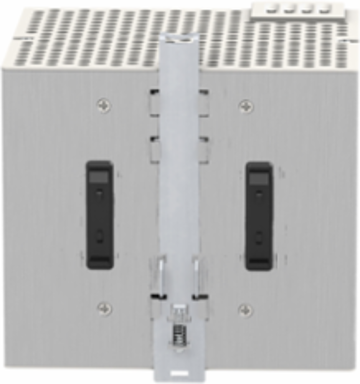

Mounting Support35 x 7.5 mm symmetrical DIN rail || 35 x 15 mm symmetrical DIN rail
Width166 mm
Efficiency92 %
Power Factor0.85 at 24 V DC
Specifications
- Range Of Product
- Modicon Power Supply
- Product Or Component Type
- power supply
- Anti-Harmonic Filter
- low frequency harmonic currents
- Permissible Temporary Current Boost
- 1.5 x In for 4 s)
- Rated Power In W
- 960 W
Output Voltage24 V DC
Power Supply Typeregulated switch mode
Input Voltage380...500 V AC three phase L1, L2, L3
Power Supply Output Current40 A
