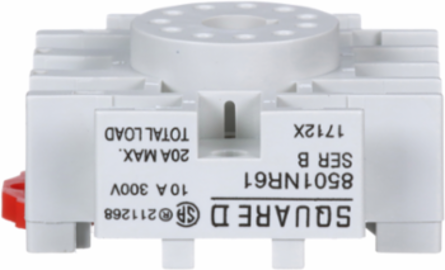

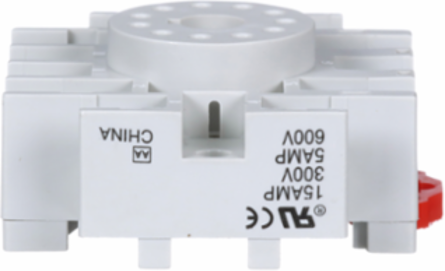

Square D 8501NR61B Plug-In Relay Socket, 11 Tubular Pins, Single Tier, 15A 300V AC
Square D 8501NR61B Plug-In Relay Socket, 11 Tubular Pins, Single Tier, 15A 300V AC
- MPN: 8501NR61B
- UPC: 785901006022
- PPN: SCH-8501NR61B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$25.83/ EA
Description

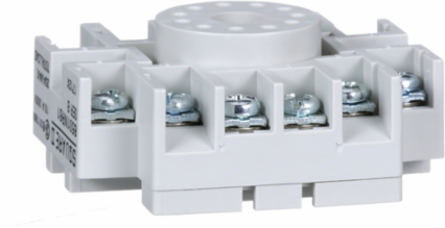

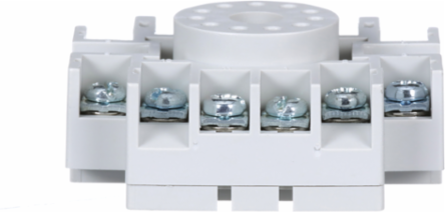

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR13 and 8501KPDR13 relays and 9050JCK timers will plug into this relay socket which is designed for 11 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511021EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Height
- 54.8 mm
- Electrical Connection
- single tiered screw clamp terminals
- Width
- 59 mm
Mounting Supportpanel || DIN rail
Quantity Per Setset of 10
Depth24.6 mm
Contractual warranty
- Warranty
- 18 months
Specifications
- [In] Rated Current
- 15 A 300 V AC || 5 A 600 V AC
