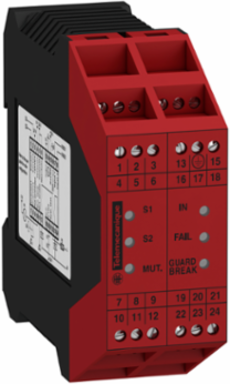

Telemecanique Sensors XPSLCMUT1160 Preventa safety module, Preventa Safety automation, XPSLC, Monitoring mute function light curtain, type2, type4
- MPN: XPSLCMUT1160
- PPN: TES-XPSLCMUT1160
- UNSPSC: 32151804
CAD
$970.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XPSLCM Safety control unit for muting function of type 2 and type 4 Safety Light Curtain provides integral LEDs, which offer a local Signaling for clearly display of device's status. Its B10D reliability data is 800 000. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SILCL 3 as described in EN/ISO 13849-1, EN/IEC 62061. It is compatible with Through-beam photoelectric sensor dark-on operate (PNP), Polarized reflex photoelectric sensor, Reflex photoelectric sensor.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 24 V DC - 20...20 %
- Product Or Component Type
- Preventa safety module
- Safety Module Name
- XPSLCM
- Number Of Additional Circuits
- 1 solid state PNP (NO), 100-100 mA status 24 V || 1 solid state PNP (NO), 20.8-208 mA lamp 24 V
- Safety Reliability Data
- PFHd = 6.42E-9...5.03E-8 1/h EN/IEC 62061 || B10d = 800000 EN/ISO 13849-1 || MTTFd = 26...100 years EN/ISO 13849-1 || DC = 96.2...98.9 % EN/ISO 13849-1
- Synchronisation Time Between Inputs
- 4 s muting
Range Of ProductTelemecanique Safety light curtains XUSL
Output Type2 relay, 2 A 24 V
Connections - Terminalsscrew terminal
Safety Module Applicationfor the muting function of type 2 and type 4 safety light curtains monitored
Function Of Modulemuting
Safety Levelcan reach PL = e with the appropriate control system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate control system and correctly wired EN/ISO 13849-1 || can reach SILCL 3 with the appropriate control system and correctly wired EN/IEC 62061
Complementary
- Sensor Power Supply
- 24-24 V
- Maximum Sensor Supply Current
- 10 mA
- Power Consumption In W
- 5 W
- Maximum Number Of Controlled Devices
- 1
- Number Of Inputs
- 2-2 per muting function)
- Net Weight
- 0.15 kg
- [Ui] Rated Insulation Voltage
- 300 VEN 50178
- Width
- 35 mm
- Maximum Response Time On Input Open
- 20 ms
Height99 mm
Mounting Support35 mm symmetrical DIN rail
Muting Maximum Duration30 s or unlimited
MarkingCE
[Uimp] Rated Impulse Withstand Voltage4 kV II EN 50178
Input Compatibilitythrough beam photoelectric sensor dark-on operate(PNP) || polarised reflex photoelectric sensor || reflex photoelectric sensor
Local Signalling6 LEDs
Depth114.5 mm
Environment
- Product Certifications
- TÃœV || cULus
- Standards
- EN/ISO 13849-1 || EN/IEC 62061
- Ambient Air Temperature For Storage
- -25-70 °C
Ambient Air Temperature For Operation0-55 °C
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI1406015EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
