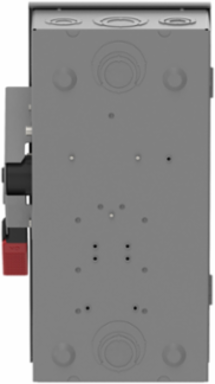

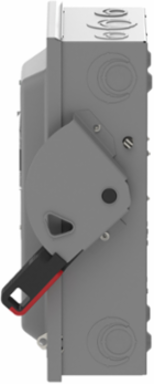

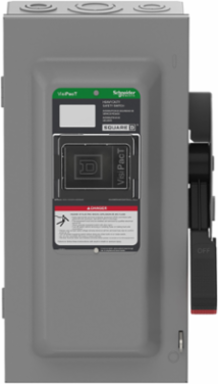

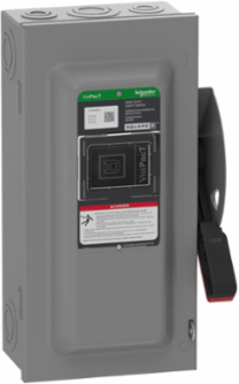

Square D VH362BGL Heavy Duty Safety Switch 600V 60A 3-Pole NEMA 1 with Viewing Window
- MPN: VH362BGL
- PPN: SCH-VH362BGL
CAD
$592.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This heavy-duty safety switch from Schneider Electric is engineered for optimal performance in power distribution applications. Designed to handle up to 600V and 60A, the 3-pole configuration allows for efficient disconnecting capabilities in various industrial settings. The inclusion of a viewing window enhances functionality by providing users with the ability to easily inspect the switch’s status at a glance. Suitable for NEMA 1 environments, it combines durability with safety features to ensure reliable operation, making it an essential component for any heavy-duty switch application.
Features
- Built with a factory-installed structural viewing window, this safety switch provides direct visual confirmation of the knife blades' physical state while keeping the door completely sealed. This allows plant electricians and safety inspectors to run routine visual audits safely, avoiding the arc flash hazards and strict PPE requirements tied to opening a live enclosure cover.
- Engineered to manage 60 Amps at up to 600V AC/DC across a 3-pole configuration, this heavy-duty disconnect features a staggering 200 kA short-circuit current rating (SCCR) when paired with standard Class J or R fuses. It provides maximum downstream circuit protection for heavy-duty three-phase machinery, commercial building mains, and industrial pumps, preventing catastrophic system overloads.
- Outfitted from the factory with a pre-installed solid neutral bar bonded directly to the steel housing, along with heavy-duty equipment grounding lugs, this 4-wire setup simplifies wiring layouts. This configuration ensures contractors have everything needed to satisfy rigid CEC and NEC service entrance code requirements right out of the box, cutting down on third-party hardware expenses.
- Housed in a rugged, powder-coated Type 1 sheet steel enclosure, this surface-mounted switch is built to handle the physical demands of indoor commercial corridors, mechanical rooms, and manufacturing facility walls. It includes a dual-cover interlock that prevents the door from opening while the power is active, locking down unauthorized access and protecting personnel from accidental exposure to high voltage.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 60 A
- Short-Circuit Current
- 200 kA for J fuse
- Motor Power
- 15 Hp at 480 V AC, 30 Hp at 480 V AC, 15 Hp at 600 V AC, 50 Hp at 600 V AC, 30 Hp at 600 V DC
- Disconnector Type
- Fusible disconnect
- Enclosure Rating
- NEMA 1 steel
- Electrical Connection
- Lugs
- Wire Size
- AWG 14 to AWG 3 copper, AWG 12 to AWG 3 aluminum
- Depth
- 7.04 in (178.82 mm)
- Height
- 18.184 in (461.87 mm)
- Grounding Kit
- Factory installation
- Certifications
- UL Listed (file E2875), RoHS Compliant
Rated Operational Voltage600 V AC/DC
Number of Poles3
Duty RatingHeavy duty
Device CompositionNeutral (factory bonded)
Mounting TypeSurface
Wiring Configuration4-wire (3P + N)
Tightening Torque50 lbf.in (AWG 3), 45 lbf.in (AWG 6 to AWG 4), 40 lbf.in (AWG 8), 50 lbf.in (AWG 14 to AWG 10)
Width8.91 in (226.31 mm)
Net Weight7 kg (15.43 lb)
Service EntranceSuitable for Canada
Country of OriginUS
