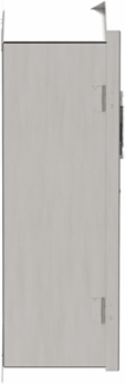

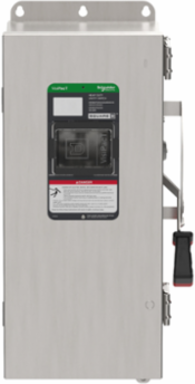

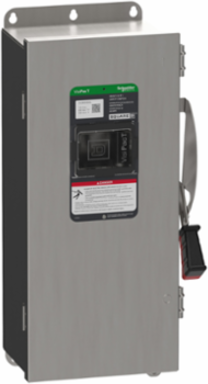

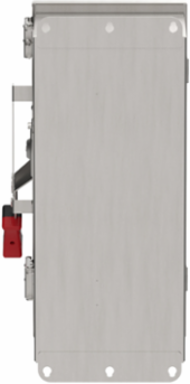

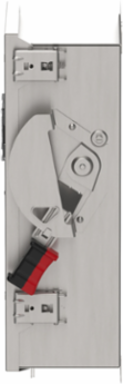

Square D VH363SSGL Heavy Duty Safety Switch, 100A, 600V, NEMA 4X, 3 Pole, Fused
- MPN: VH363SSGL
- PPN: SCH-VH363SSGL
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This heavy-duty safety switch from Schneider Electric is engineered to provide reliable operation in demanding environments, boasting a robust 100A capacity and accommodating voltages of up to 600V. Its NEMA 4X rating ensures protection against dust and water, making it ideal for both indoor and outdoor installations. Designed with a three-pole configuration and fused protection, this safety switch enhances safety and efficiency in electrical systems, making it an essential component for industrial applications where durability and performance are paramount.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 100 A
- Short-Circuit Current
- 10 kA to 200 kA depending on fuse type and clips
- Disconnect Type
- Fusible disconnect
- Number of Poles
- 3
- Electrical Connection
- Lugs
- Wire Size
- AWG 12...AWG 1/0 aluminum, AWG 14...AWG 1/0 copper
- Width
- 9.336 in
- Height
- 20.73 in
- Material
- NEMA 4X stainless steel enclosure
- Certifications
- UL Listed
- REACH Compliance
- Free of Substances of Very High Concern
Voltage600 V AC/DC
Fuse TypeH or K, R or J
Duty RatingHeavy duty
Mounting TypeSurface
Wiring Configuration3-wire
Tightening Torque50 lbf.in (AWG 1...AWG 3/0), 45 lbf.in (AWG 6...AWG 4), 40 lbf.in (AWG 8), 35 lbf.in (AWG 14...AWG 10)
Depth7.2 in
Net Weight10.4 kg (22.93 lb)
Product TypeSingle Throw Safety Switch
RoHS ComplianceEU and China RoHS compliant
Condition of UseSuitable service entrance for USA and Mexico
