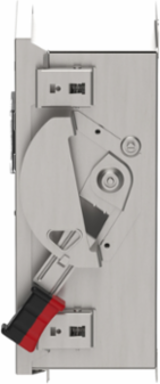

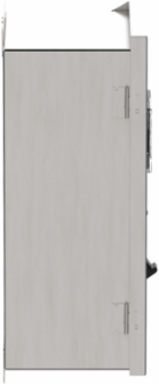

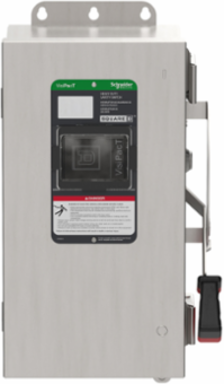

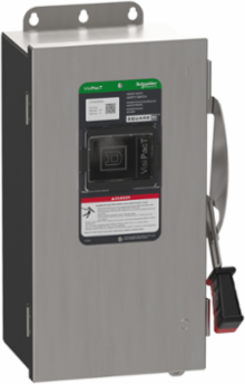

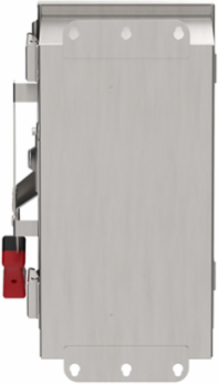

Square D VH362SSGL Heavy Duty Fused Safety Switch 60A 3-Pole NEMA 4X 600V
- MPN: VH362SSGL
- PPN: SCH-VH362SSGL
CAD
$2822.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust performance in demanding applications, Schneider Electric's heavy-duty fused safety switch is designed to provide reliable electrical protection. With a capacity of 60A and configured for three-pole operation, this switch is suitable for environments requiring enhanced safety measures. Its NEMA 4X rating ensures it can withstand harsh conditions, making it ideal for outdoor installations and areas exposed to moisture or dust. This safety switch not only ensures safe disconnection of electrical circuits but also enhances operational efficiency, making it a vital component for any industrial setup.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 60 A
- Voltage Rating
- 600 V AC/DC
- Motor Power
- 15 Hp at 480 V AC; 30 Hp at 480 V AC; 15 Hp at 600 V AC; 50 Hp at 600 V AC; 30 Hp at 600 V DC
- Fuse Type
- H or K, R or J
- Mounting Type
- Surface
- Wiring Configuration
- 3-wire
- Tightening Torque
- 50 lbf.in (AWG 3); 45 lbf.in (AWG 6 to AWG 4); 40 lbf.in (AWG 8); 50 lbf.in (AWG 14 to AWG 10)
- Net Weight
- 10 kg (22.05 lb)
- Service Entrance
- Suitable for USA and Mexico
- Country of Origin
- US
Number of Poles3
Short-Circuit Current10 kA for H, K, J or R without fuse rejection clips; 200 kA for R with fuse rejection clips; 200 kA for J
Duty RatingHeavy duty
Disconnect TypeFusible disconnect
Electrical ConnectionLugs
Wire Size RangeAWG 14...AWG 3 copper; AWG 12...AWG 3 aluminum
Dimensions (H x W x D)16.93 in x 8.92 in x 7.26 in
Enclosure RatingNEMA 4X stainless steel
CertificationsUL listed file E2875
