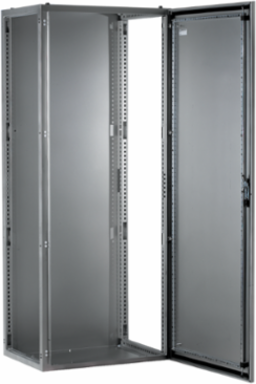

Schneider Electric NSYSFX20860 SFX 304L Stainless Steel Enclosure H2000xW800xD600mm IP66, UL Certified
- MPN: NSYSFX20860
- PPN: SCH-NSYSFX20860
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robustness and longevity, the Schneider Electric NSYSFX20860 SFX enclosure is constructed from high-quality 304L stainless steel, ensuring outstanding resistance to corrosion and environmental wear. With its IP66 rating, this enclosure effectively protects sensitive equipment from dust and water ingress, making it ideal for both indoor and outdoor installations in various automation and control applications. Its UL certification further guarantees compliance with safety standards, providing peace of mind for users. Measuring 2000mm in height, 800mm in width, and 600mm in depth, this enclosure offers ample space for housing essential data and communication equipment, optimizing performance and protection in demanding environments.
Documentation & Downloads
Specifications
Additional
- Material
- Stainless steel 304L structure and door, Zamak handle, Stainless steel hinge
- IK Degree of Protection
- IK10 IEC 62262
- Product Certifications
- UL
- Door Opening Side
- Reversible 120°
- Body Type
- Rear panel integrated, Single piece structure folded and welded
- Mounting Plate Description
- Without mounting plate
- Net Weight
- 81 kg
- Enclosure Nominal Width
- 800 mm
- Enclosure Nominal Depth
- 600 mm
- Removable Parts
- Door by hinges, mounting plate bracket by screws, cable gland plate by clips
- Environmental Characteristic
- Specific hygiene, Corrosive
- Range
- Spacial
- Rohs Exemption Information
- Yes
- China Rohs Regulation
- Product out of China RoHS scope
- Device Application
- Multi-purpose
- Sustainable Offer Status
- Green Premium product
- Warranty
- 18 months
IP Degree of ProtectionIP66 IEC 60529
StandardsIEC 62208, NEMA 4X
Door TypePlain solid
Lock Type3 points lock, handle with 5 mm double-bar insert
Type of Gland PlatePlain
Accessibility for OperationFront, Side
Number Of DoorsFront face 1
Enclosure Nominal Height2000 mm
Device Composition1 structure, 1 locking system with handle door, 4 mounting plate bracket, 1 cable gland plate, 1 door with reinforcement frame
Installation Accessory TypeFloor-standing
Mercury FreeYes
Environmental DisclosureENVPEP2107011EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Surface FinishScotch-Brite® brushed enclosure, painted handle
Reach RegulationContains SVHC above threshold
Circularity ProfileN/A
Country of OriginBulgaria
