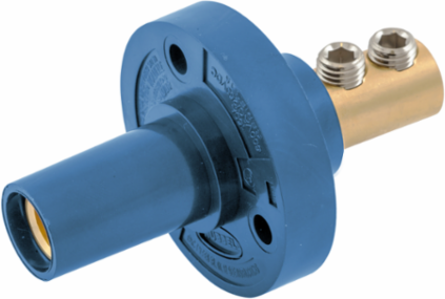

Bryant HBL15FRBL Single Pole Female Receptacle, 150 Amp, Blue, Double Set Screw Termination
- MPN: HBL15FRBL
- UPC: 783585458205
- PPN: HBL-HBL15FRBL
- UNSPSC: 39121406
CAD
$47.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Pole Products, Female Receptacle, Double Set Screw Termination, 150 Amp Series, Blue
Features
- Double Set Screw Termination
- 150 Amp Series
- Blue
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 4.754 in
- Performance
- Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG
- Application
- Extra Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 1-Pole
- Special Features
- Standard Product
- Type
- Receptacle
- Wire Size
- #4 AWG Type SC/PPC Wire
- Connectivity
- Double Set Screw
- Nema Rating
- Non-NEMA
- Style
- Double Set Screw Female
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Brass/Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Each - Pack Description
- Each
Current / Amperage Rating150 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating150 A
ColorBlue
NEMA RatingNon-NEMA
PhaseSingle Phase
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Wattage90000
Voltage Rating Description600V AC/DC
Display SizeStandard Sized Product
Number Of Poles1-Pole
Description - InvoiceSINGLE POLE SER.15 RECEP, DBLSET SCR,BL
Harmonization Code8536698000
MSDS FlagNo
Current Rating150 A
Series15 Series
BOX SIZE5.100x9.500x9.700 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack783585458205
Case Weight5.750 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
