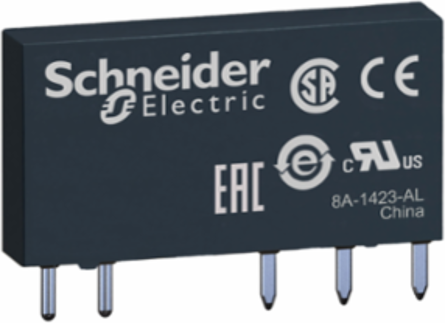

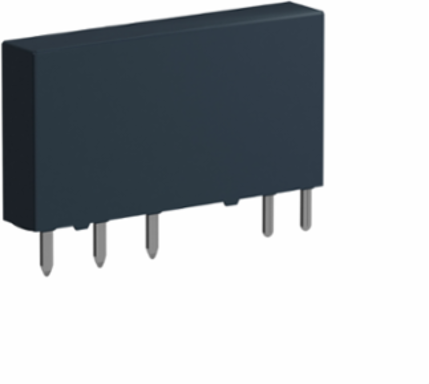

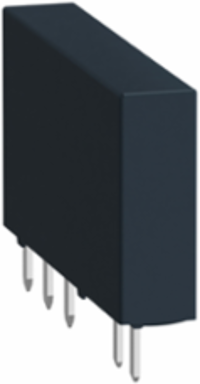

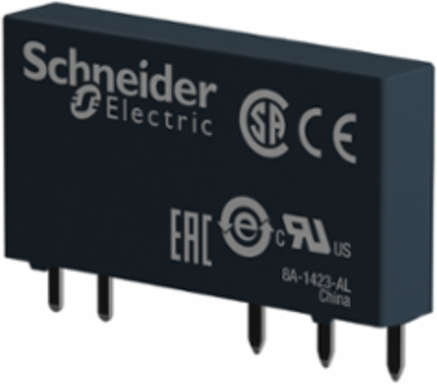

Schneider Electric RSL1GB4ND Slim Interface Relay, 6A, 1CO, 60V DC, 6mm Width

  • MPN: RSL1GB4ND
  • PPN: SCH-RSL1GB4ND

CAD

$12.68

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

[Uc] Control Circuit Voltage
60 V DC
Product Or Component Type
plug-in relay
Control Type
without push-button
Contacts Type And Composition
1 C/O
Device Short Name
RSL
Range Of ProductHarmony Electromechanical Relays
Status Ledwithout
Series Nameslim interface relay
Contact Operationlow level
[Ithe] Conventional Enclosed Thermal Current6 A -40-55 °C

Complementary

Maximum Switching Capacity
1500 VA || 50 W
Height
28 mm
Operating Rate
<= 360 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levels
level A group mounting
Contacts Material
silver alloy - gold plated (AgSnO2)
Net Weight
0.0054 kg
Maximum Switching Voltage
277 V
Device Presentation
complete product
Average Coil Consumption
0.21 W
[Ie] Rated Operational Current
6 A AC-1/DC-1)IEC/UL
Minimum Switching Current
1 mA
Mechanical Durability
10000000 cycles
Operating Time
5 ms reset || 12 ms
Load Current
6 A 250 V AC 0.5 mm mounting distance
Depth
18.5 mm
Safety Reliability DataB10d = 60000
Terminals Description Iso N°1(A1-A2)CO || (11-12-14)OC
Protection CategoryRT III
Mounting Supportsocket or PCB
Shape Of Pinflat (PCB type)
[Uimp] Rated Impulse Withstand Voltage6 kV IEC
Average Resistance16600 Ohm 23 °C +/- 15 %
Minimum Switching Capacity24 mW
Rated Operational Voltage Limits45...84 V DC
[Ui] Rated Insulation Voltage250 V IEC || 277 V cUL
Electrical Durability60000 cycles, 6 A 250 V, AC-1 C/O
Operating Positionany position
Width5 mm
Drop-Out Voltage Threshold>= 0.05 Uc
Minimum Switching Voltage24 V

Environment

Product Certifications
EAC || CSA || UL
Ambient Air Temperature For Operation
-40-55 °C
Dielectric Strength
1000 V AC between contacts || 4000 V AC between coil and contact
Ip Degree Of Protection
IP40 IEC 60529
StandardsUL 508 || CSA C22.2 No 14 || IEC 61810-1
Shock Resistance5 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Vibration Resistance+/- 1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C

Contractual warranty

Warranty
18 months

Offer Sustainability

Toxic Free
Yes
Mercury Free
Yes
Sustainable Offer Status
Green Premium product
Reach Regulation
Free of Substances of Very High Concern above the threshold
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile
ENVEOLI1405004EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1405004EN
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Phenolic Free SolutionYes
